BH7550 is a butt hinge which measures 75 x 50mm (L x W). The pre-punched holes have diameter of 5.2mm and are spaced at a distance of 27mm from each other. The thickness of the hinge is 2mm and is made of stainless steel which gives strength to the lid or door of your case.

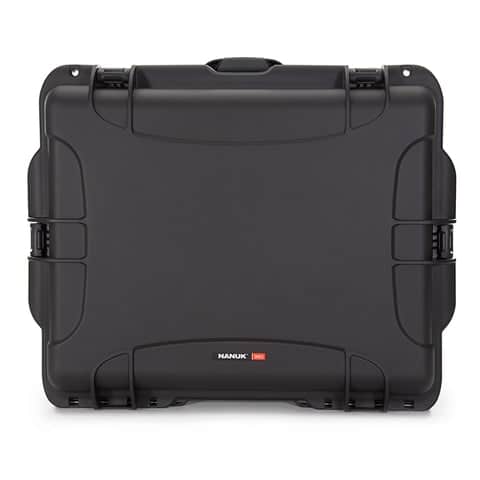

NANUK 960 PLASTIC INJECTION MOLDED CARRY CASE Price range: $611.51 through $865.91

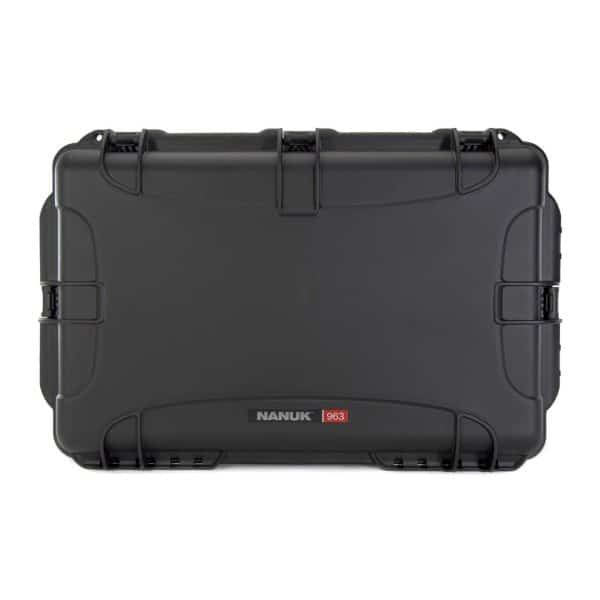

NANUK 963 PLASTIC INJECTION MOLDED CARRY CASE Price range: $691.15 through $870.81

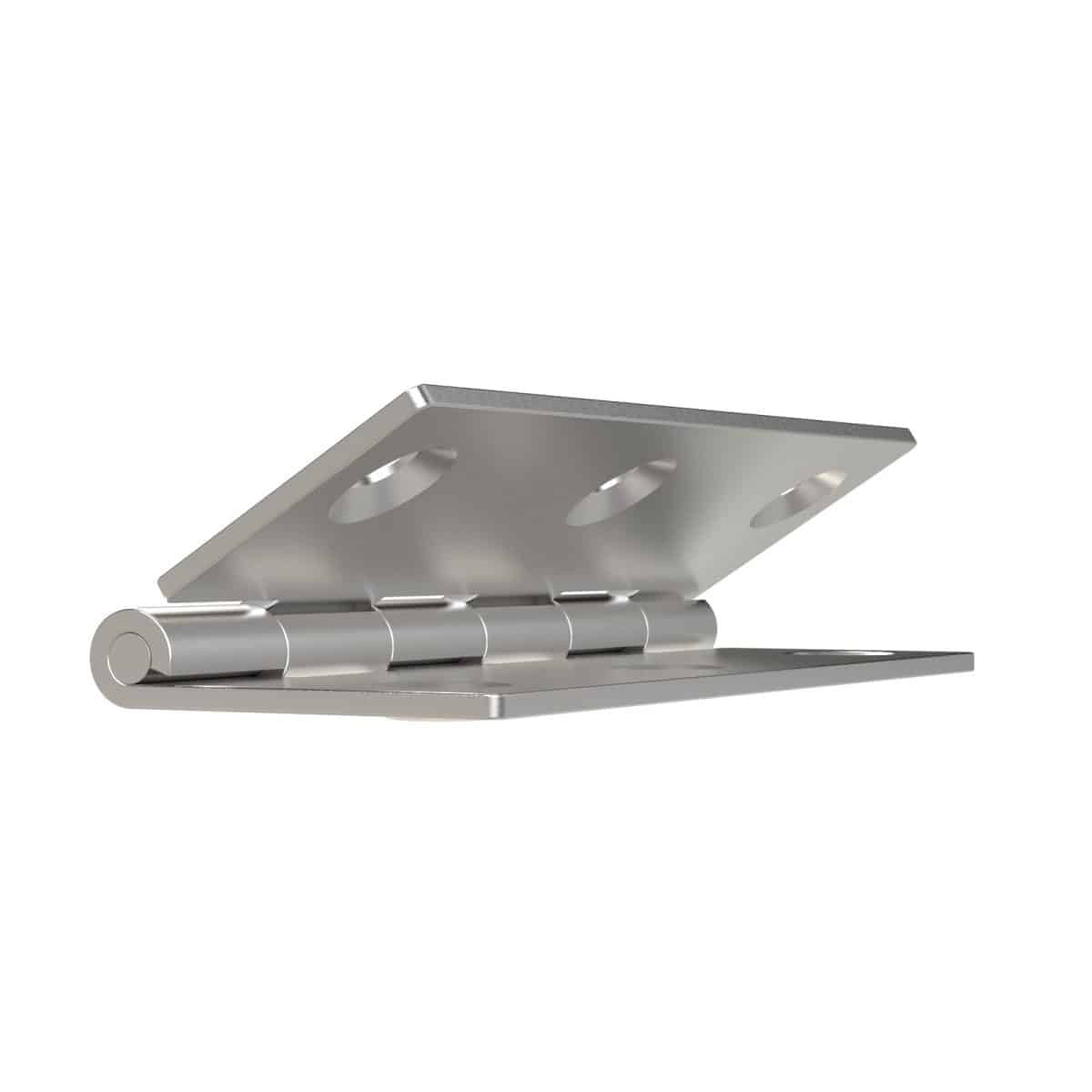

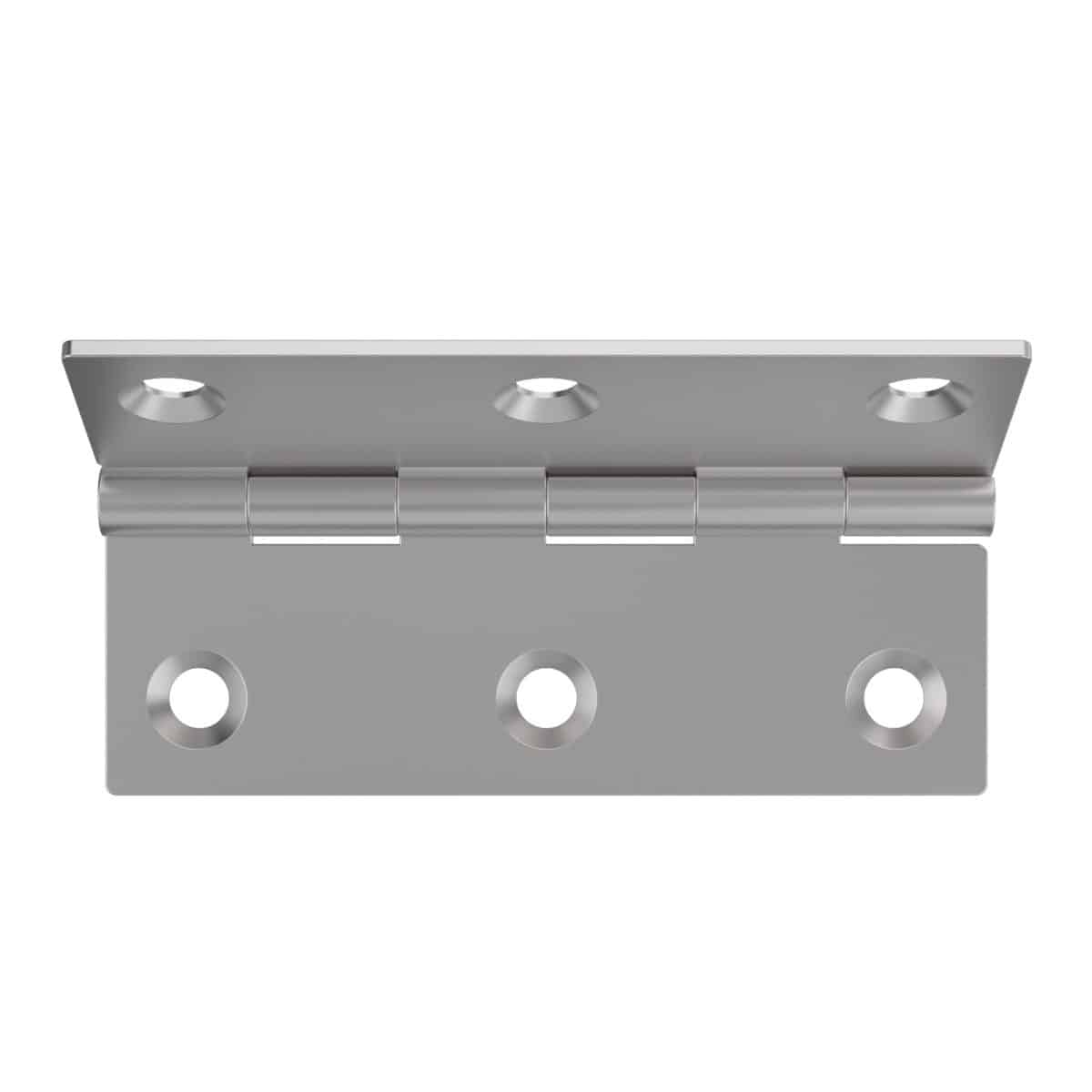

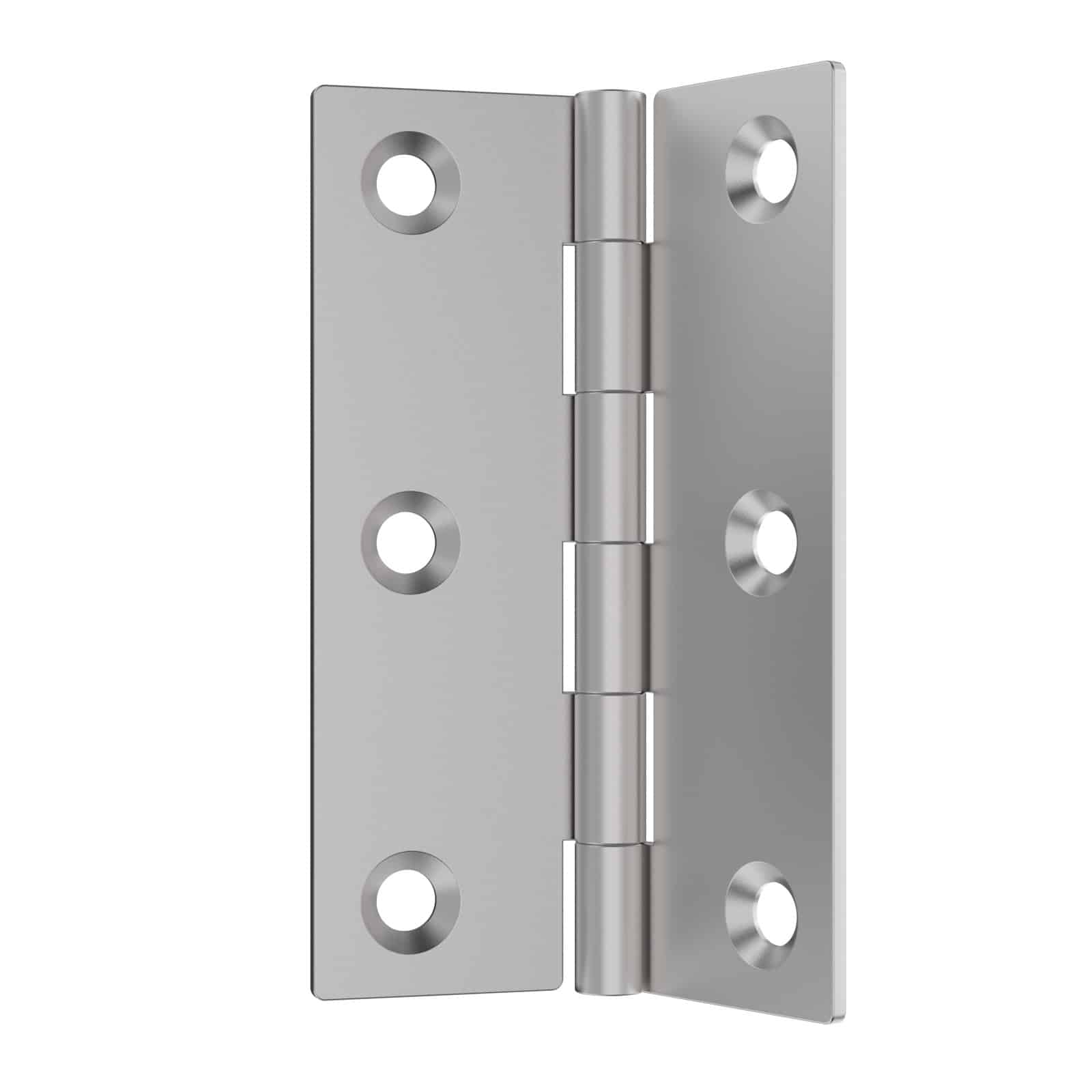

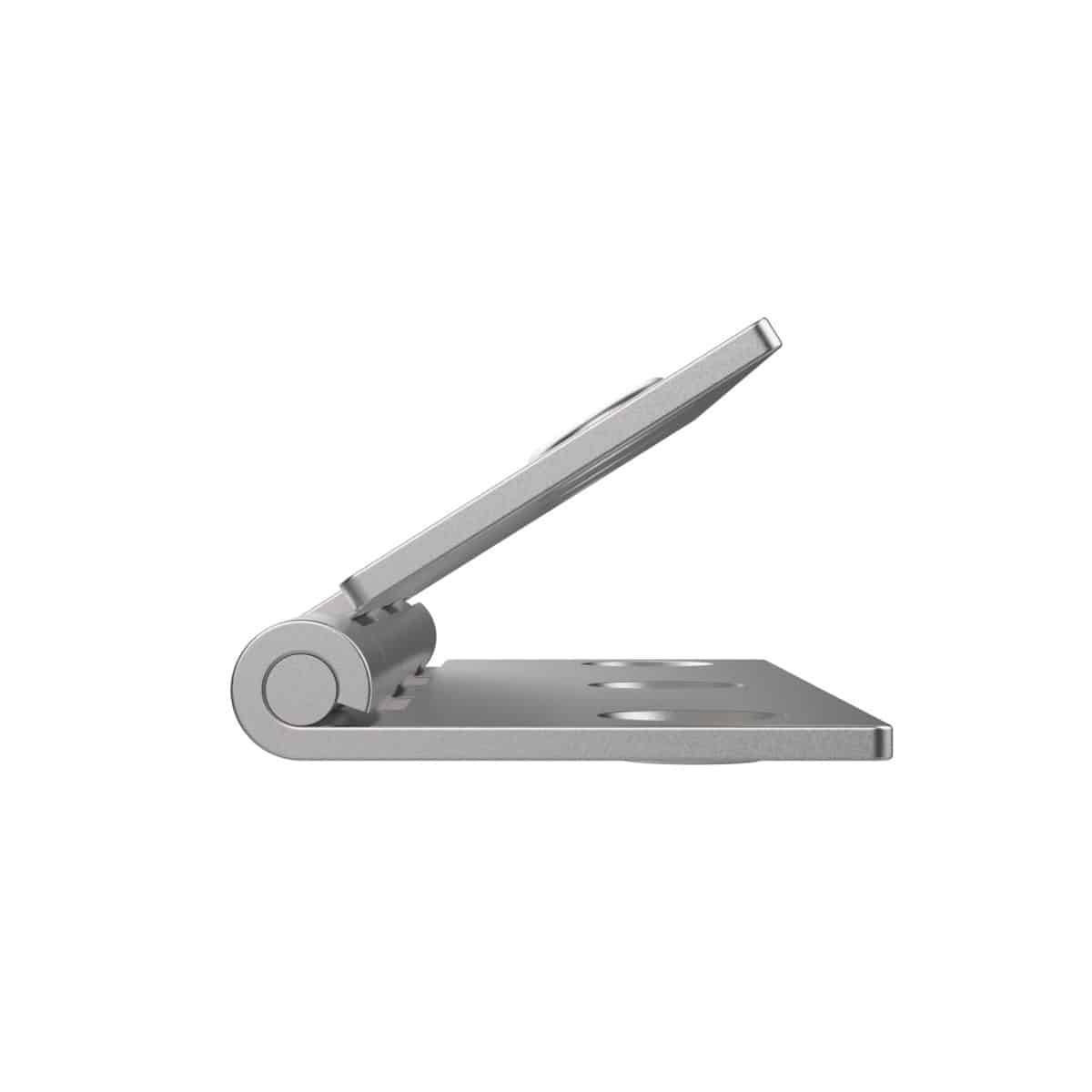

ARMOR BUTT HINGE 75X50MM
$10.98
This butt hinge is 76mm long, comes with pre-punched holes and when laid out it has a width of 50mm. The hinge is made from 2mm stainless steel.
688 in stock
SEND US A MESSAGE
Description
Technical Doc.
| 2D Drawing | Download |
Specifications
| Size | 75 x 50mm (L x W) |
|---|---|
| Thickness | 2mm |
| Hole Distance (Same Side) | 27mm |
| Hole Distance (Opposite Sides) | 30mm |
| Material | Stainless Steel |
