Close-up of T10 torque hinge showing two steel leaves with four pre-punched holes for secure lid attachment.

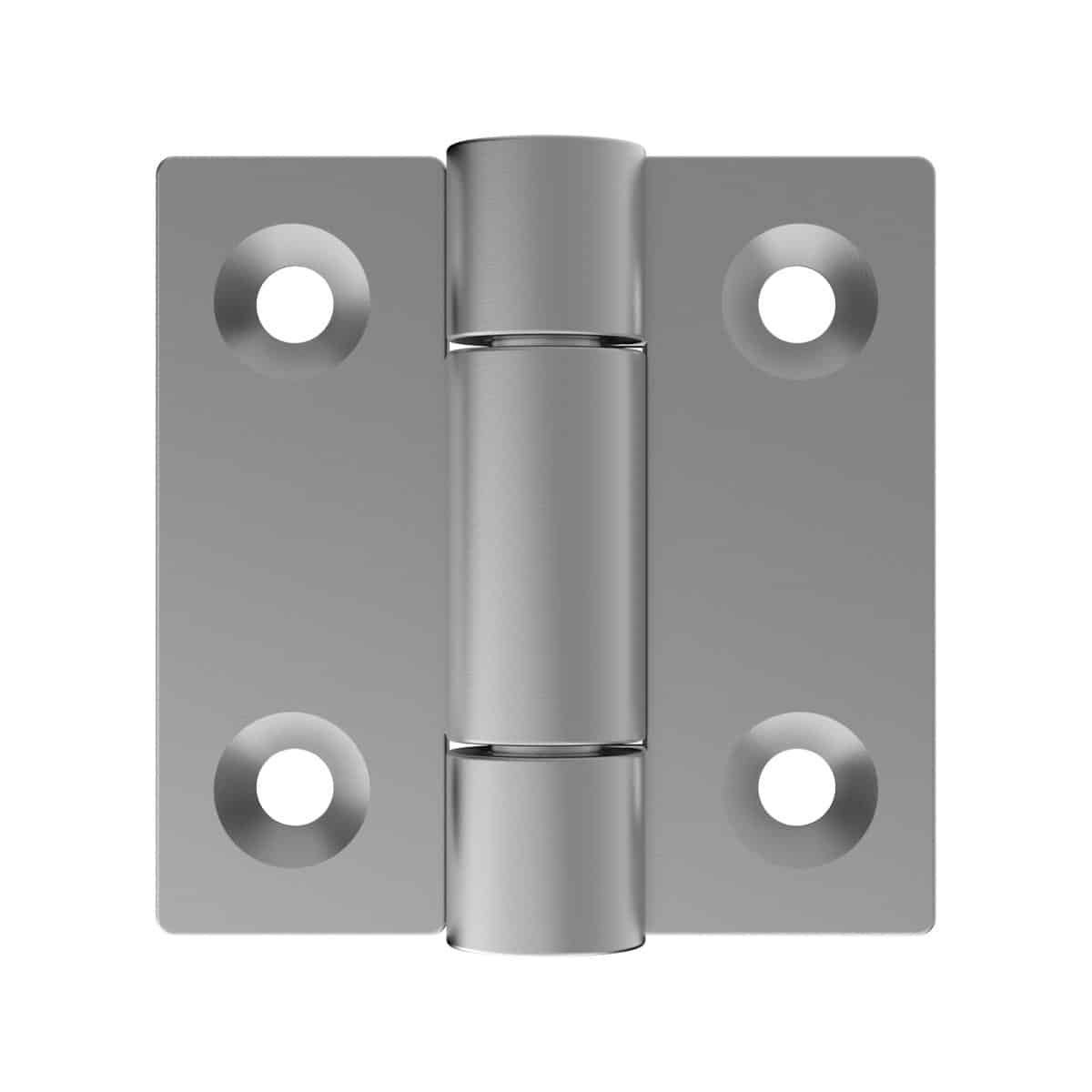

T10 hinge opened to 40 x 40 mm, highlighting hole spacing of 25 mm and 26 mm for precise alignment.

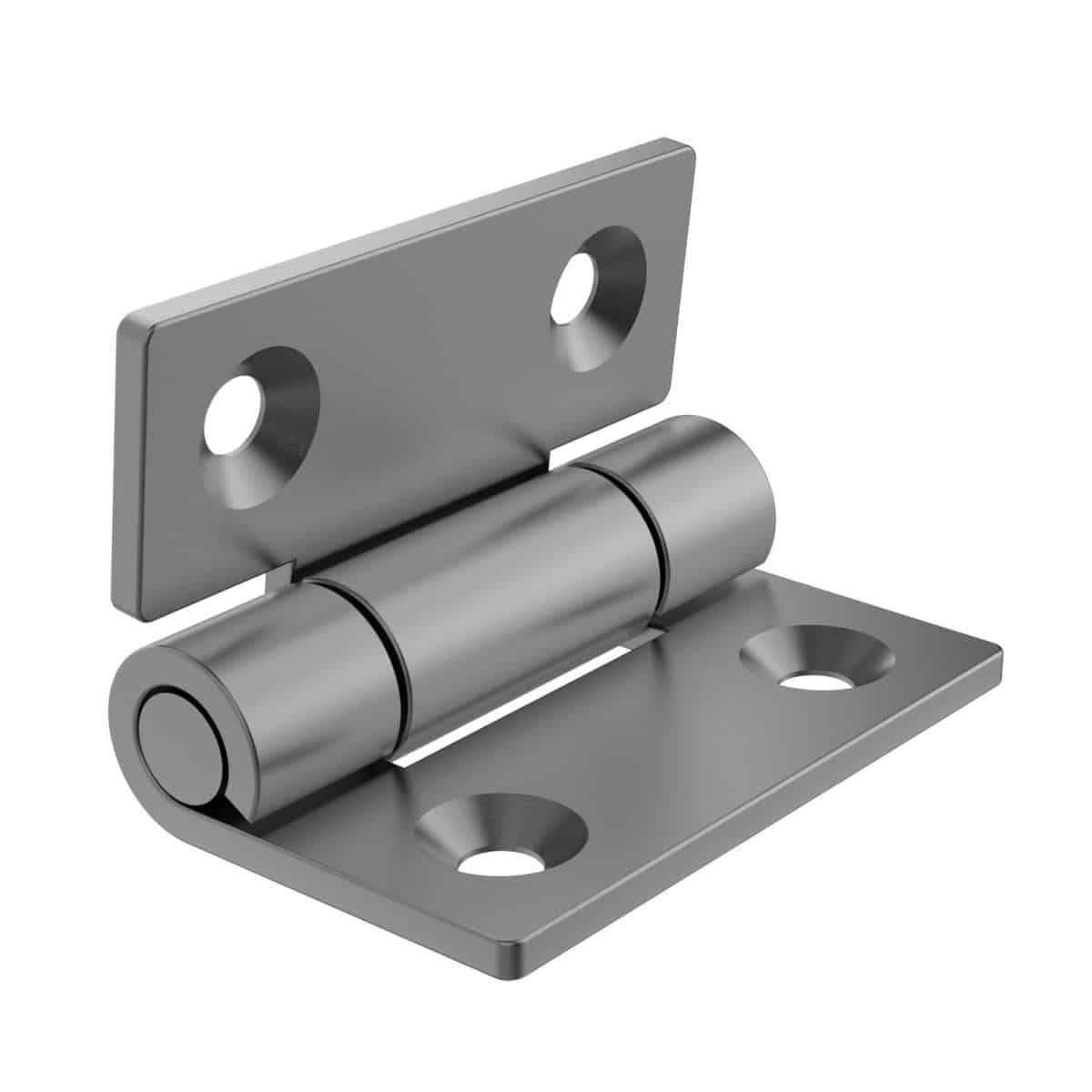

Detailed view of hinge holes with 5 mm inner and 8 mm outer diameters, designed for firm rear door support.
Click to enlarge
Close-up of T10 torque hinge showing two steel leaves with four pre-punched holes for secure lid attachment.
T10 hinge opened to 40 x 40 mm, highlighting hole spacing of 25 mm and 26 mm for precise alignment.
Detailed view of hinge holes with 5 mm inner and 8 mm outer diameters, designed for firm rear door support.

ARMOR T10 STEEL TORQUE HINGE 40X40MM

Price range: $7.70 through $9.35

The T10 torque hinge has two leaves with 4 pre-punched holes. When opened it measures 40 x 40mm. Two holes on the same side are spaced at 25mm while the distance between holes on either side is 26mm. The holes have an internal diameter of 5mm and the outer hole has 8mm diameter. It is made of 2mm steel and can give a firm holding to the lid/rear door of your case.

Purchase this item and get 7-8 Points - a worth of $0.01-$0.02
Purchase this item and get 7-8 Points - a worth of $0.01-$0.02
Clear
Enquire Now
Compare
Add to wishlist
SKU: HING-T10 Categories: ,
Description
Stainless steel torque Hinge 3
Technical Doc.
Specifications
Reviews (0)
