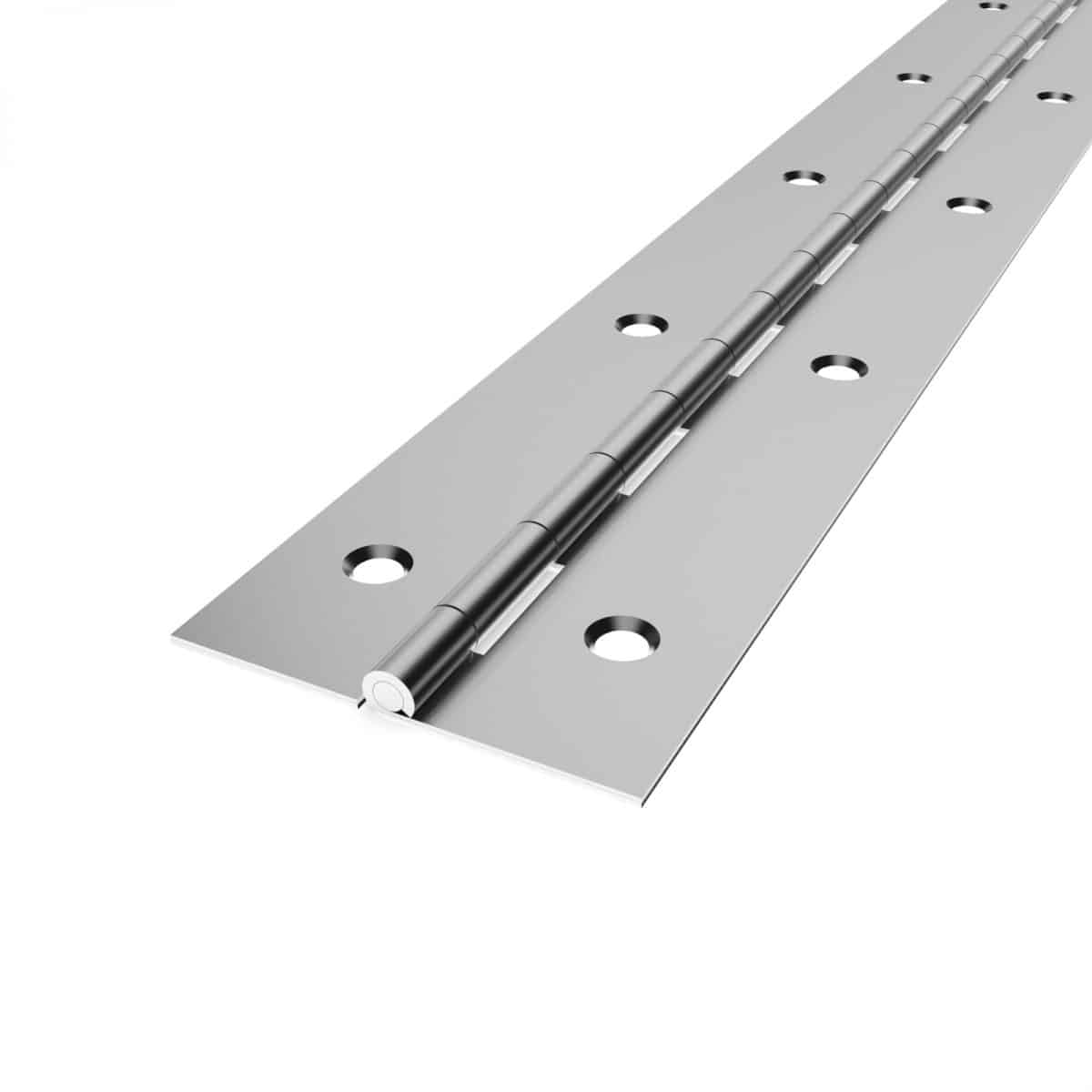

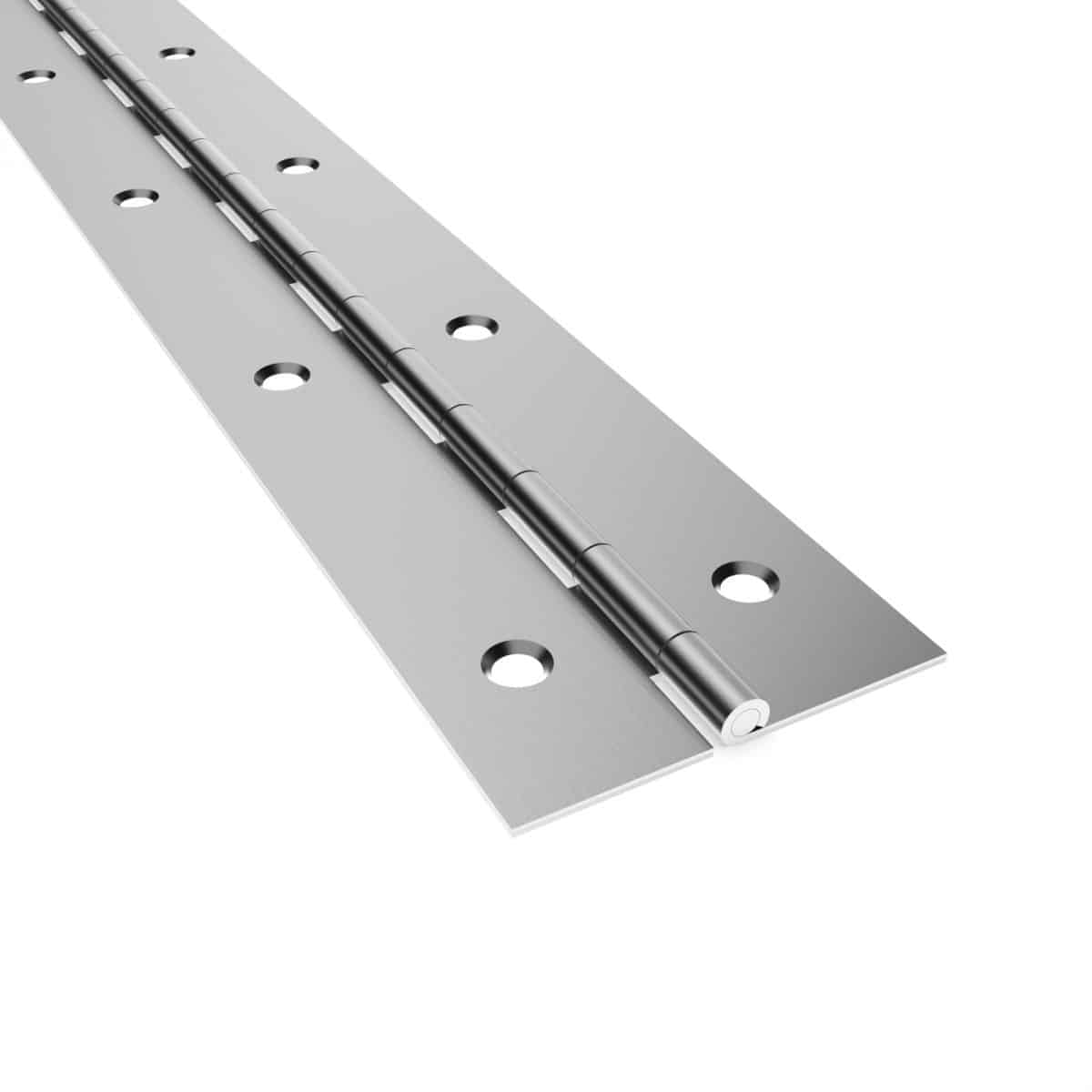

ARMOR P38 38MM/1.5“ STAINLESS STEEL PIANO HINGE PUNCHED, 1.2MM THICKNESS, 705MM FOR 1190MM CASES

Rated 4.50 out of 5 based on 2 customer ratings

$11.00 – $55.00

This high-strength continuous piano hinge is the ideal choice for connecting the lid with the bottom of your tailored road case. Also, it can be used on flight cases and any other item that needs a strong attachment. This hinge is a great solution for covering groove & hybrid extrusions from side to side. The specific model is 1.2mm thick, comes pre-punched with 4mm holes and when laid out it has a width of 38mm. Made from stainless steel, it comes in a variation of lengths: 105mm, 305mm, 705mm and 1800mm.

Enquire Now

SEND US A MESSAGE

Your First Name

Your Last Name

Your Email

Phone Number

Company

Your Message

[honeypot email]

Description

Continuous hinges or piano hinges are designed to provide consistency in strength along the entire length of the hinge and securely support the part that is attached to them.

This piano hinge is made of 1.2MM stainless steel and comes with pre-punched holes. When unfolded, the hinge measures 1.5″ or 38mm wide.

Specifications

Gross Weight	N/A
Piano Hinges Cut Lengths	105MM , 305MM , 705MM , 1800MM
Width	38mm
Thickness	1.2mm
Hole Distance (Same Side)	60mm
Hole Distance (Opposite Sides)	23.4mm
Material	Stainless Steel
