Custom Foam Inserts Design & Manufacturing

Armor Cases embraces 3d laser scanning technologies, and industry leading CAD software such as Solidworks & AutoCAD for accurate foam insert design and production.

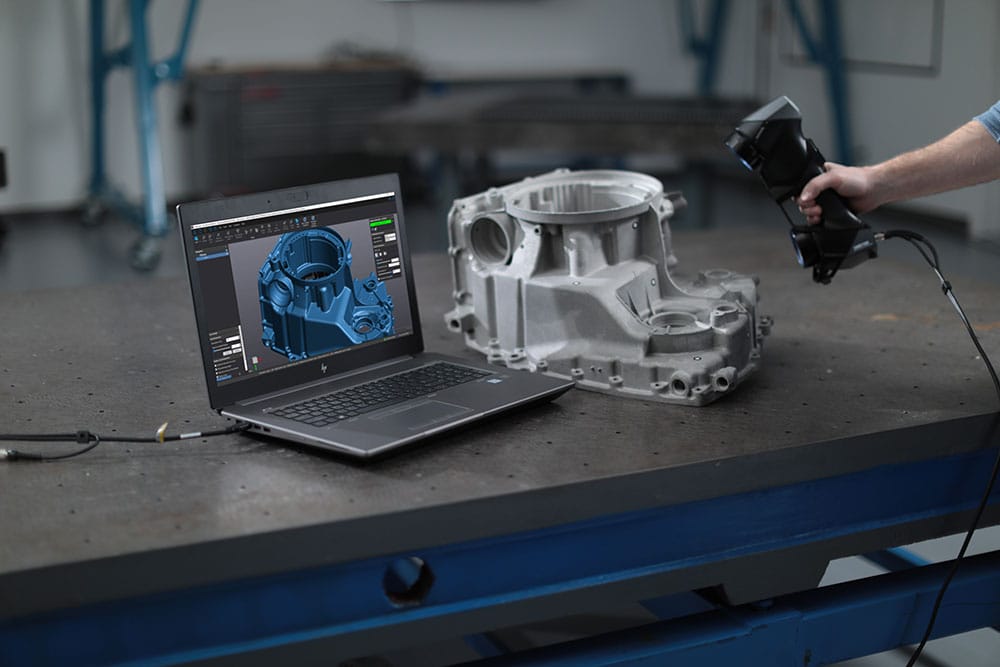

3d laser scanning

3D scanning

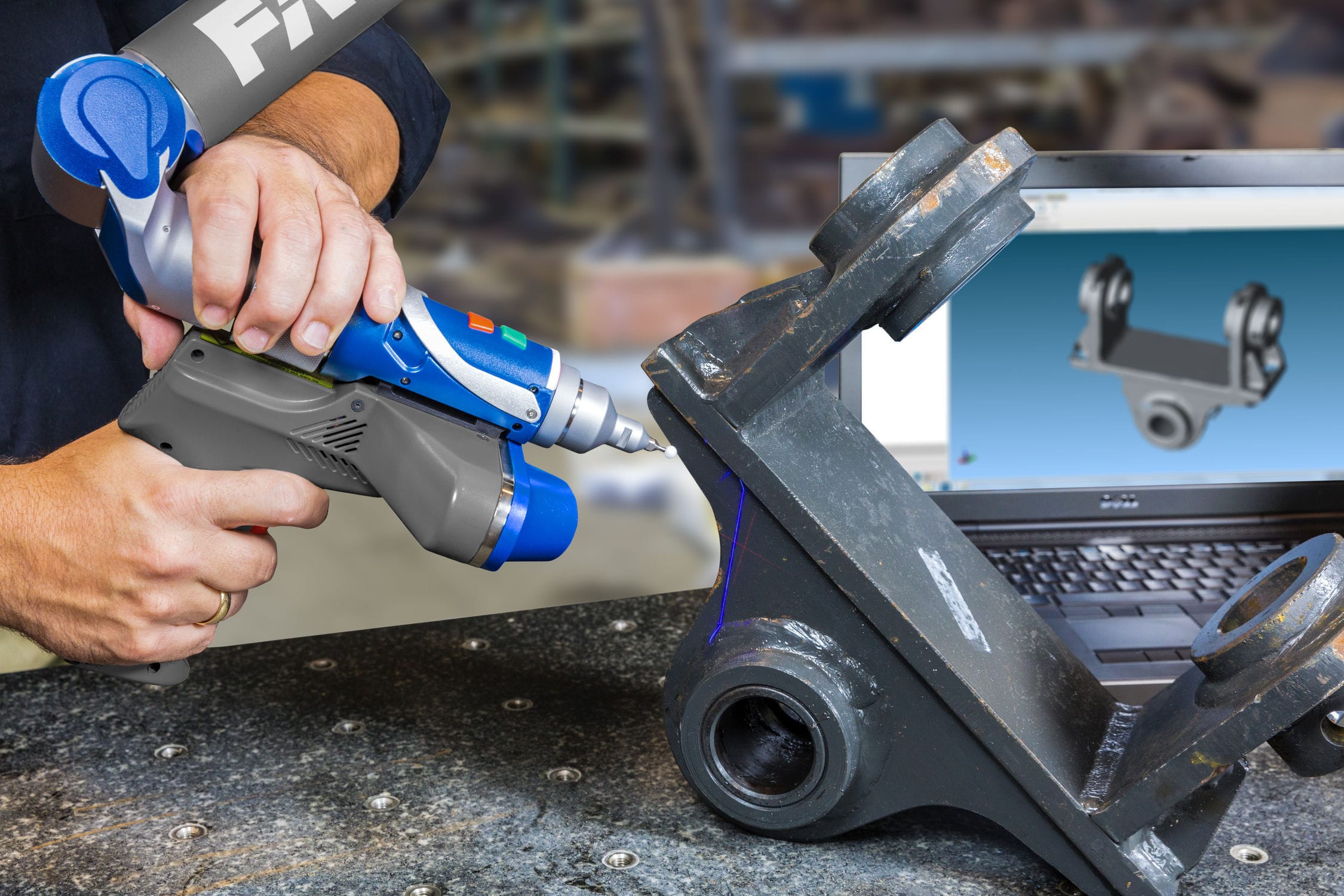

By investing in the latest handheld laser scanners we are able to achieve high accuracy and efficiency in obtaining the 3d measurements of various products.

Accuracy0.05mm
Maximum Product Size1000x50X50MM
Minimum Turn Around 30minutes


We save 3d shapes into step files for foam insert design using Solidworks or AutoCAD

FOAM INSERT DESIGN PROCESS

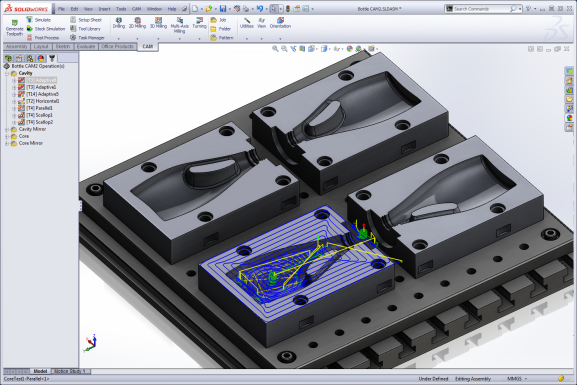

We design your foam insert using industry leading software such as Solidworks & AutoCAD. We are able to model the foam inserts in 3D and present them to customer for comments before commencing productions.

Precision Manufacturing of Foam Inserts

CNC routers will then be used to accurately produce these foam inserts once designs are confirmed. We stock mainly EVA and EPE foam at our Auburn workshop for small and urgent orders. Our Guangzhou workshop is able to mass produce foam inserts with more choices on foam type and color.

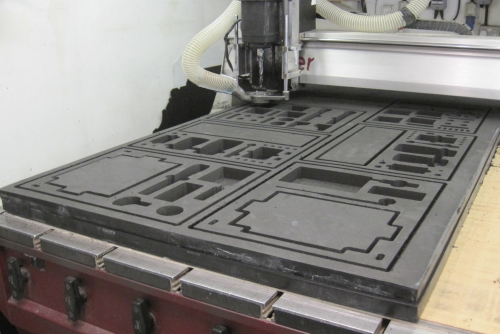

CNC Routing

Suitable for small orders as well as 3D shapes

Mold Cutting

Suitable for mass producing 2D custom foam inserts

Depending on the design, we may also mass produce them using mold cutting. In this case a mold cutting blade is custom made to the shape as per design. It will then used to produce the required cutout with much higher efficiency than CNC routing.

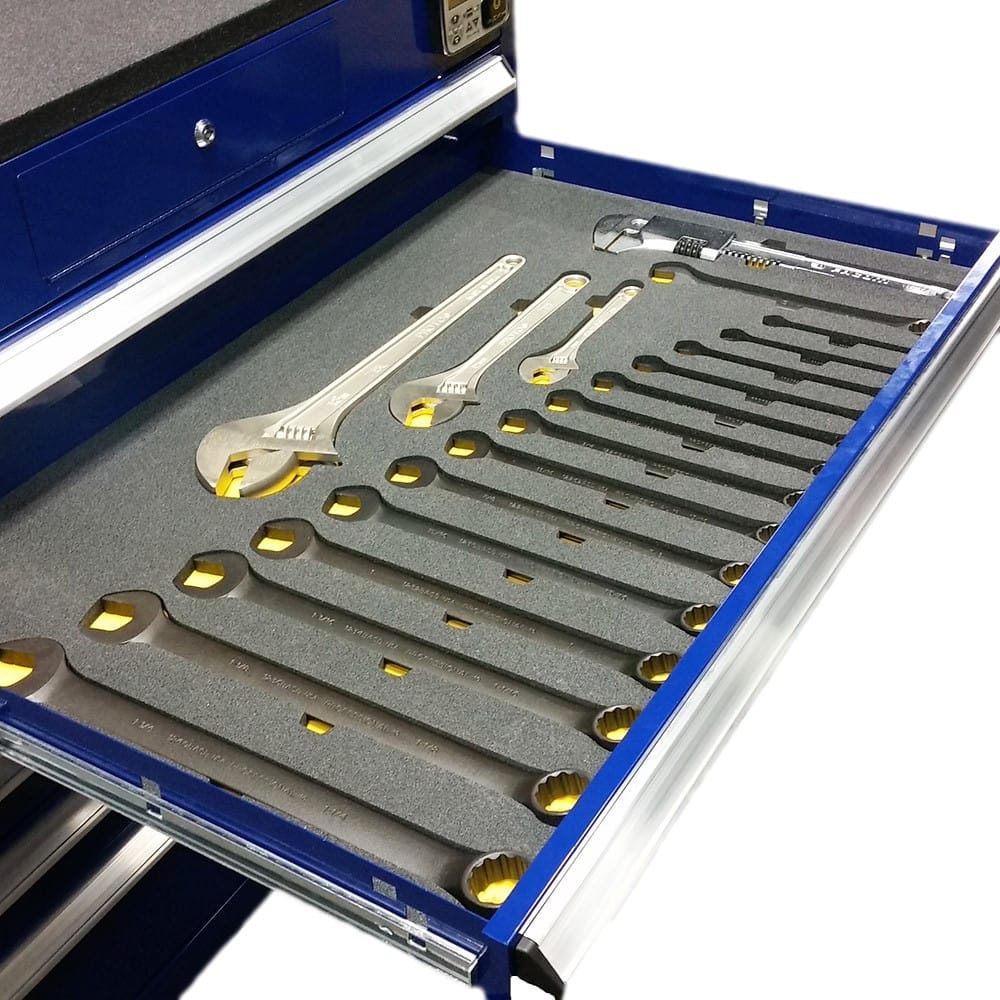

toolbox custom foam insert

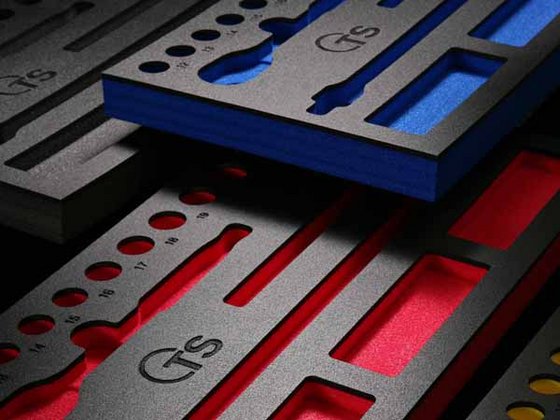

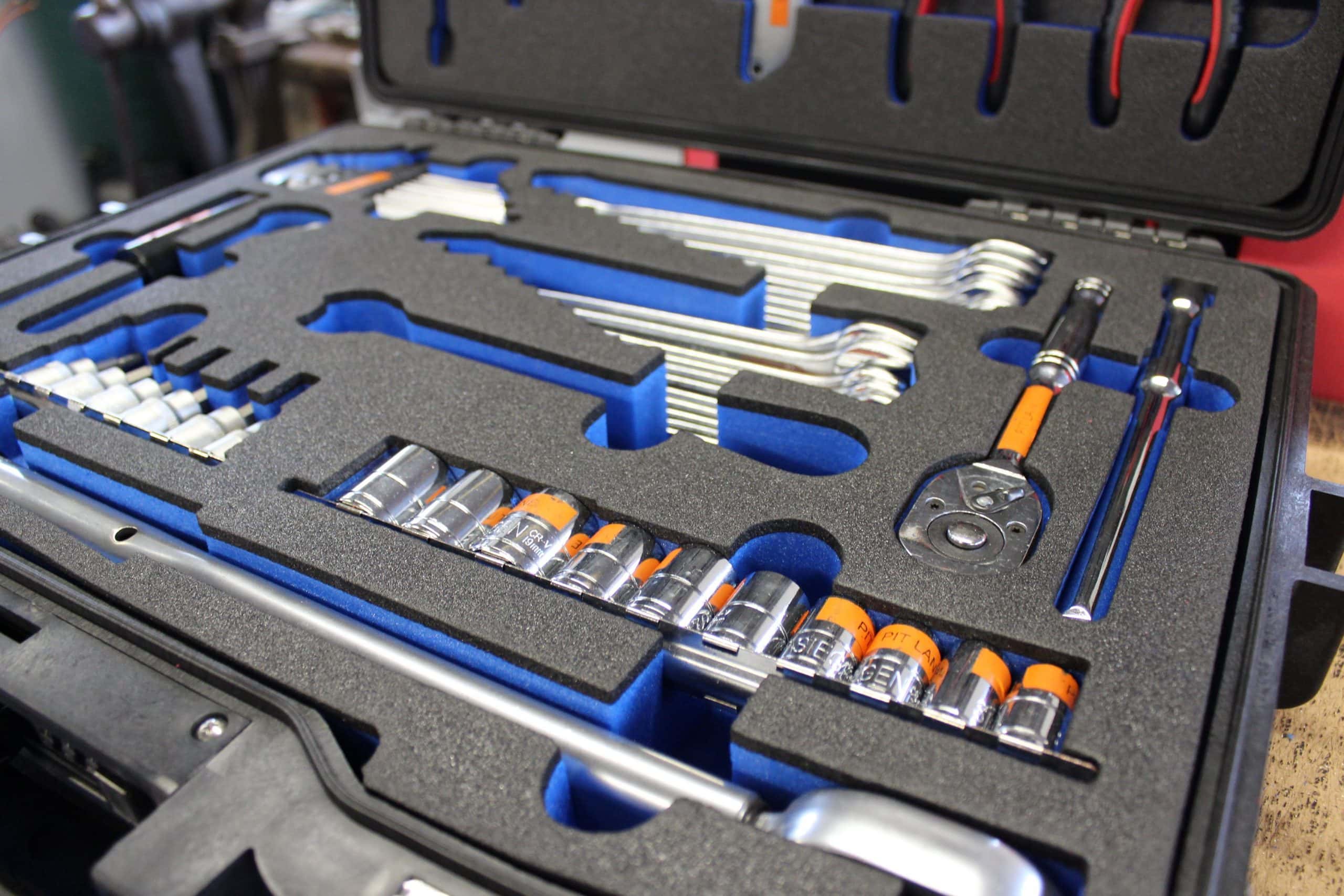

custom foam insert

ORGANIZED BEAUTIFULLY

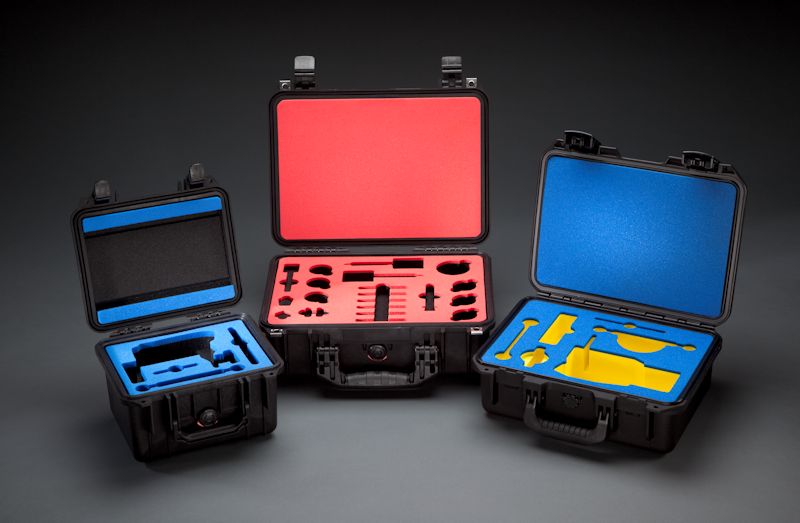

Custom foam inserts helps to keep instruments and products organized in your transport cases. This reduces the chance of property loss as well as damages. For sales & marketing this will significantly improve your branding image by presenting your products in a foam insert.
