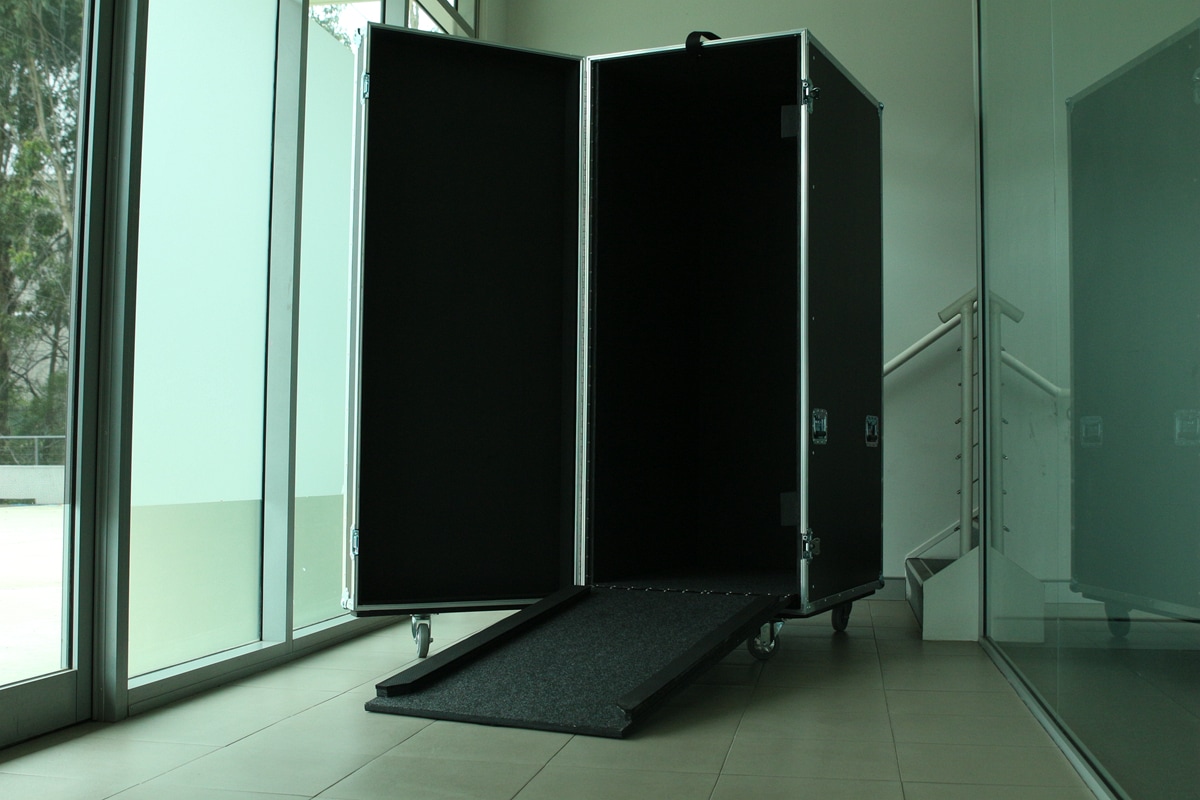

Road Case with Built In Ramp for Mobile Coffee Machine Display Unit

This road case was built for transporting a mobile coffee display unit to and from exhibitions. The case is built with 12mm plywood with 18mm reinforcement frame internally to keep it sturdy and square. 10mm and 10mm EVA foam are used for interior lining.

The built in ramp comes with guides on both side for the users to aim and push the mobile display unit into the road case without worrying it will fell off the ramp half way. This also makes moving a large and heavy item in and out of the case a relatively easy task.

20MM Eva foam are used under the floor of the case to provide shock relief similar to the flotation cases. The ramp is finished with carpet and when folded the velcro strap located at rear of the ramp can be used to secure the ramp in upright position.

Additional castor with base board is installed under the front hinged door to provide support to the door so that it is always easy to open and close the door.
