Price range: $13.86 through $23.10

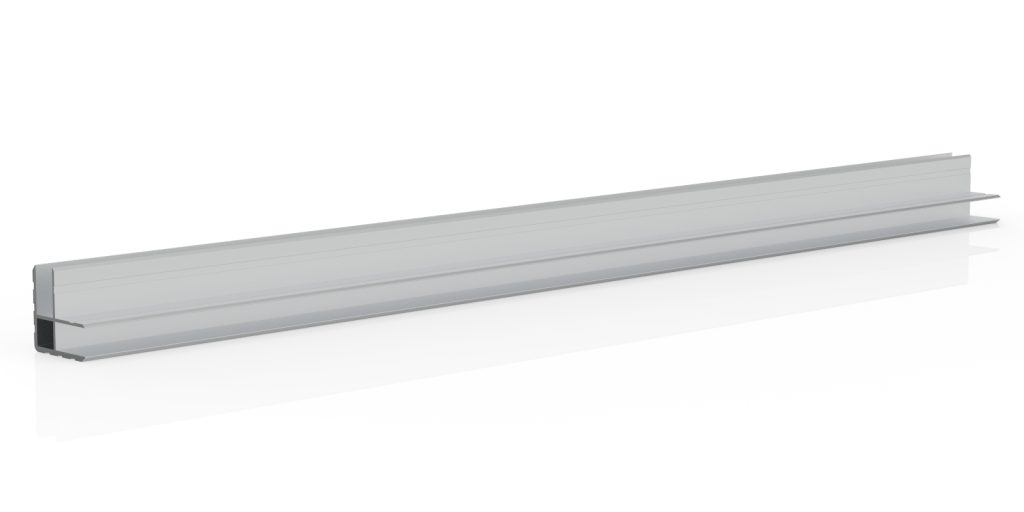

This double angled extrusion provides protection for the edges of road cases built with 9mm panels while the inner leg serves as reinforcement. Additionally, the inner reinforcements allow the panels to be spaced evenly, allowing for simpler construction.

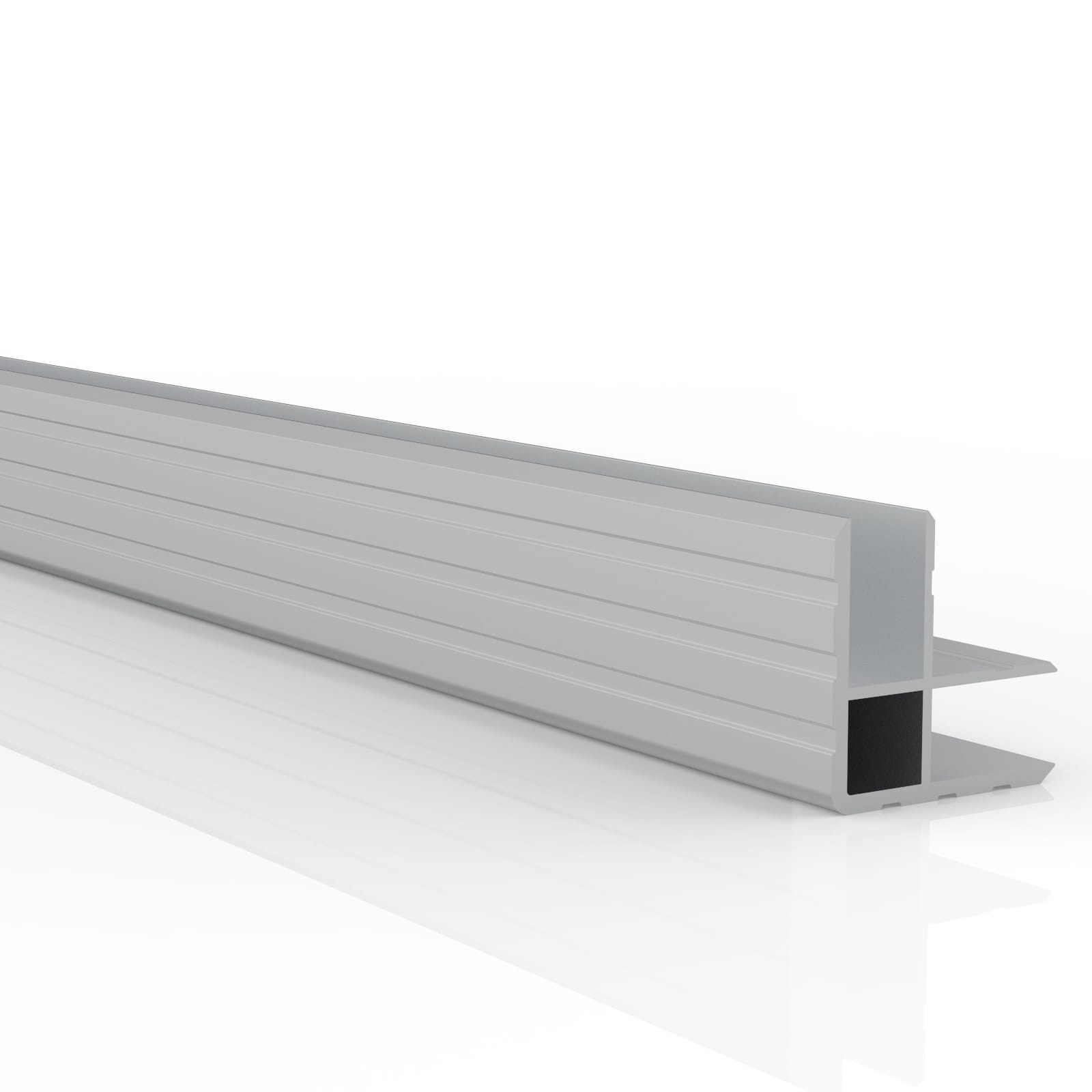

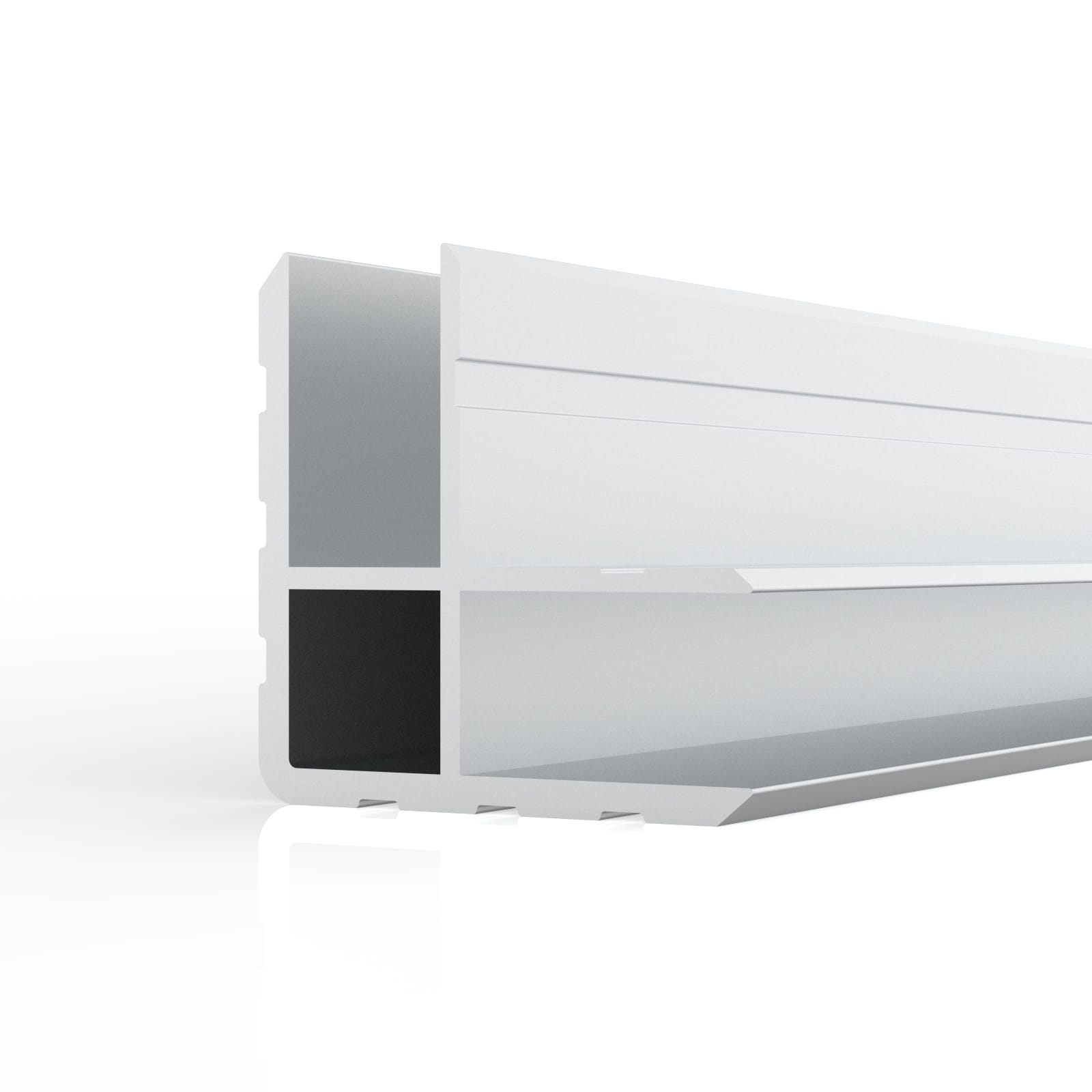

This double angle extrusion has two legs which can fit 9mm thick panels in between. The advantage of this is the added support provided by the inner leg and being able to join panels together and protect their common edge in a single step.
This extrusion is made of 6063-T5 aluminium, with a thickness of 2mm. Available in 1.5m and 3m lengths.
| Package Dimensions | N/A |
|---|---|
| Thickness | 1.2mm |
| Material | 6063-T5 Aluminium |
| Extrusion Cut Length | 1.5M, 3.0M |
Only logged in customers who have purchased this product may leave a review.
No account yet?
Create an Account
Verified ownerLuis (verified owner) –
Perfect for my needs, made it easier to make the case
Verified ownerMichael P. (verified owner) –
Verified ownerLuis Santos (verified owner) –
