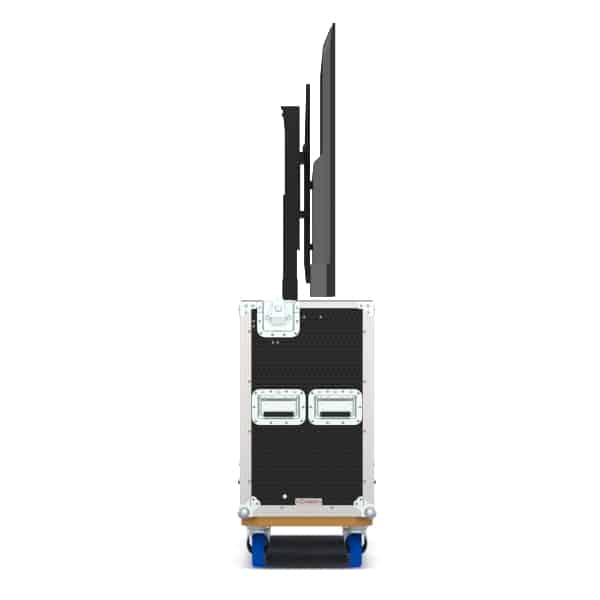

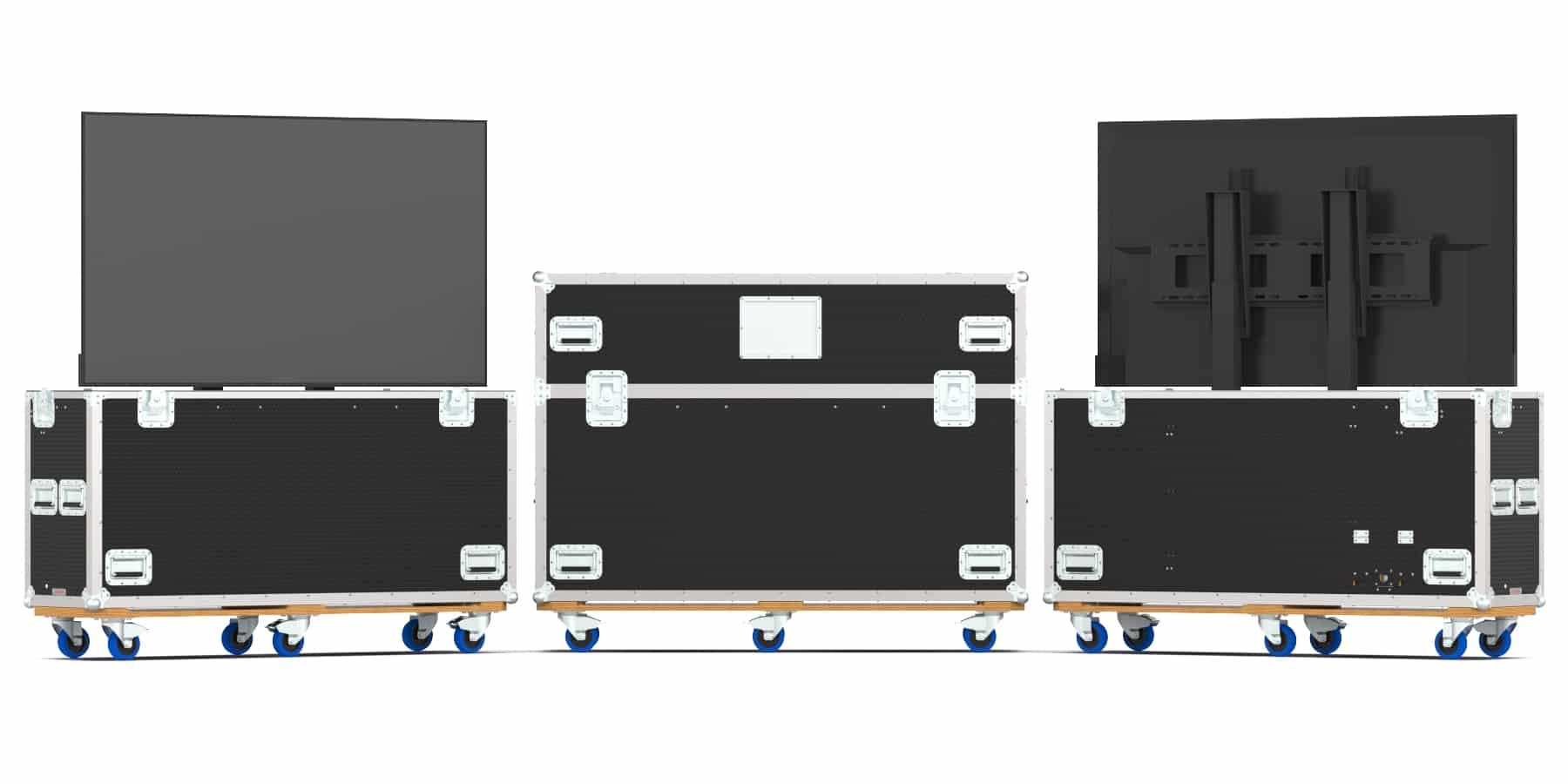

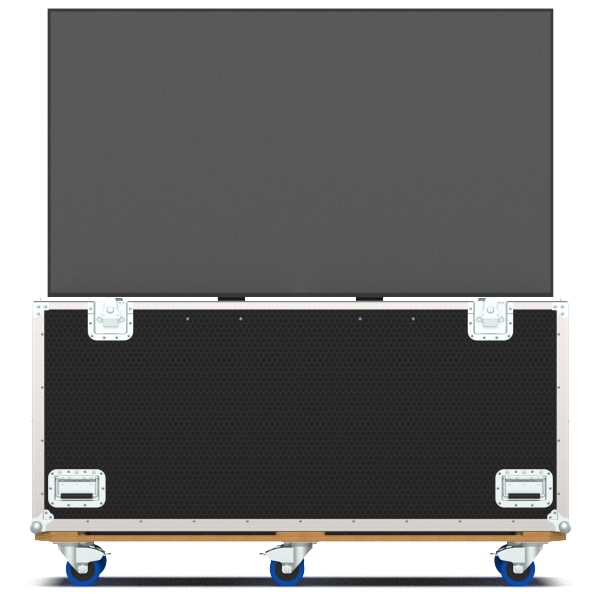

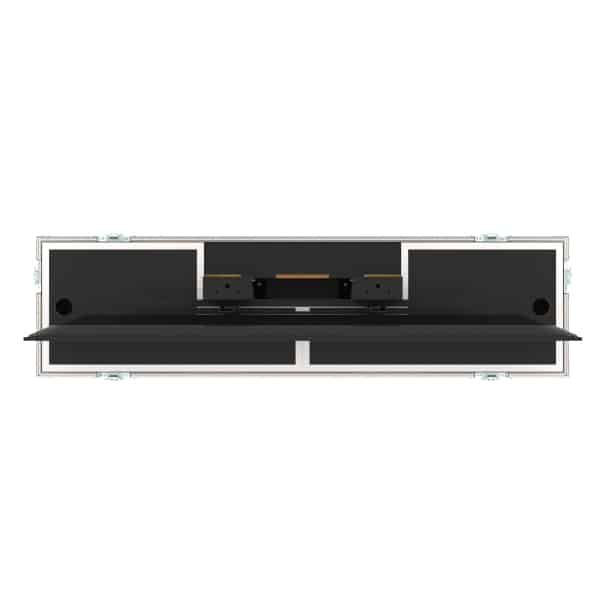

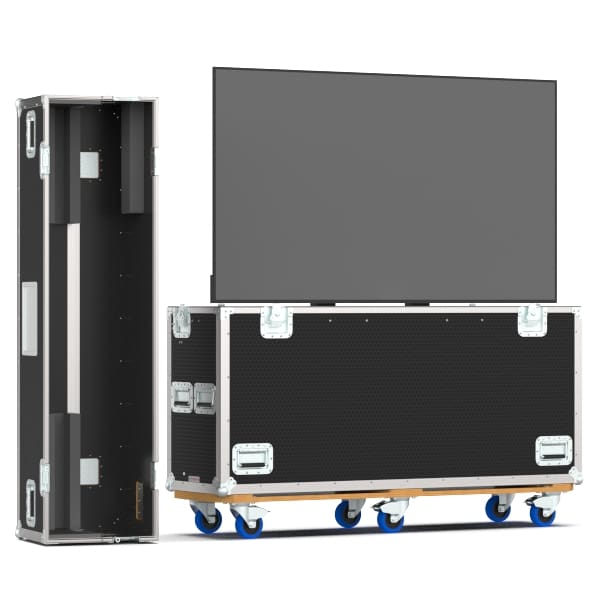

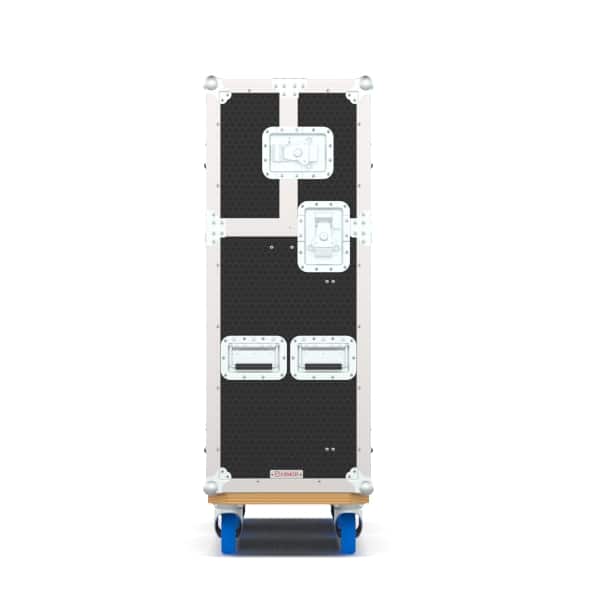

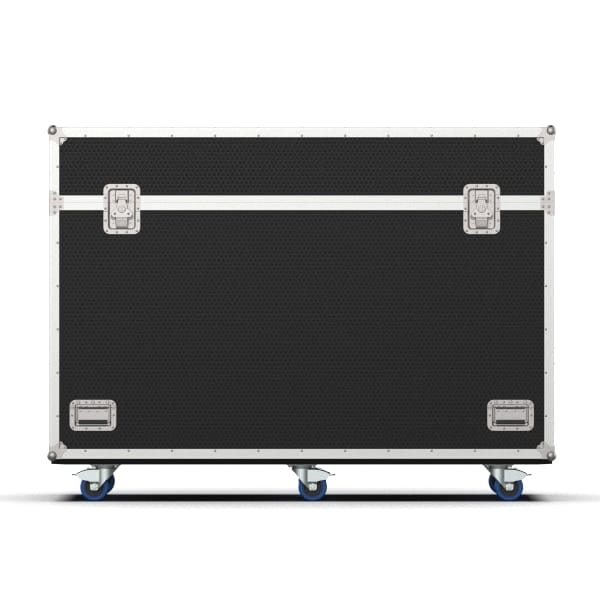

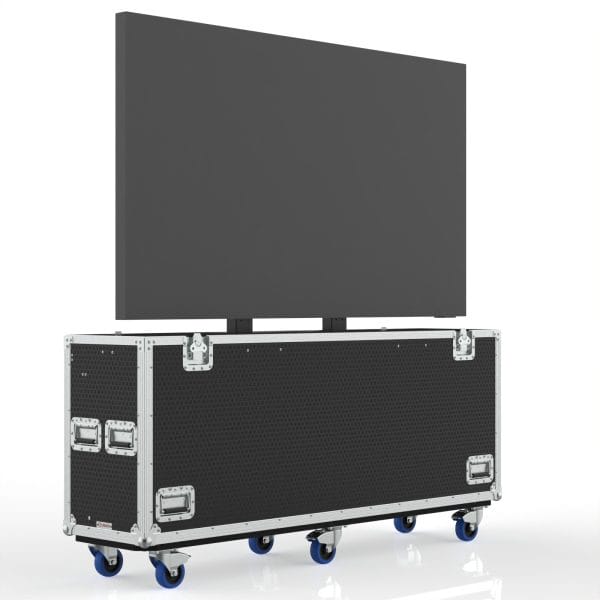

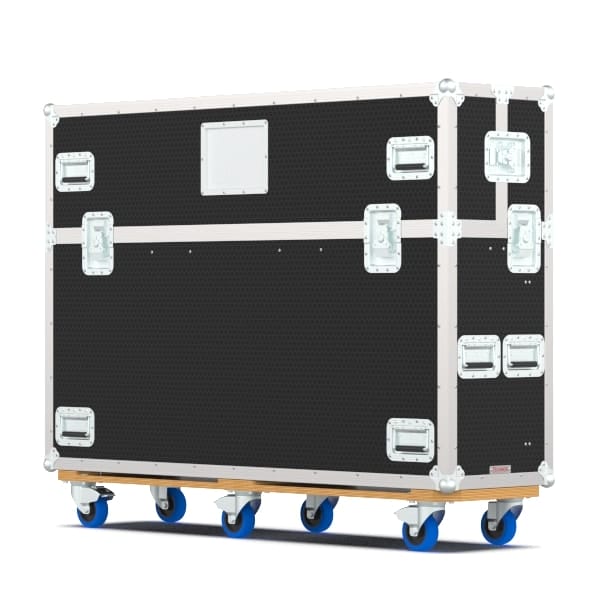

This transport case with built in motorised lift for displays is constructed with 12mm plywood panels. You can rest easy knowing that this heavy duty road case can keep your TV safe.

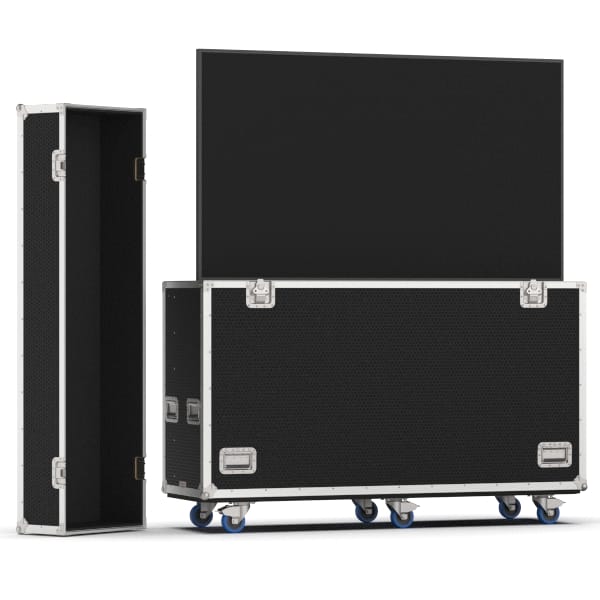

Knowing how difficult it can be to place and remove a large and hefty 65 inch TV from any kind of packaging, we have designed our case to be able to accommodate a motorized lift to safely take care of the heavy lifting.

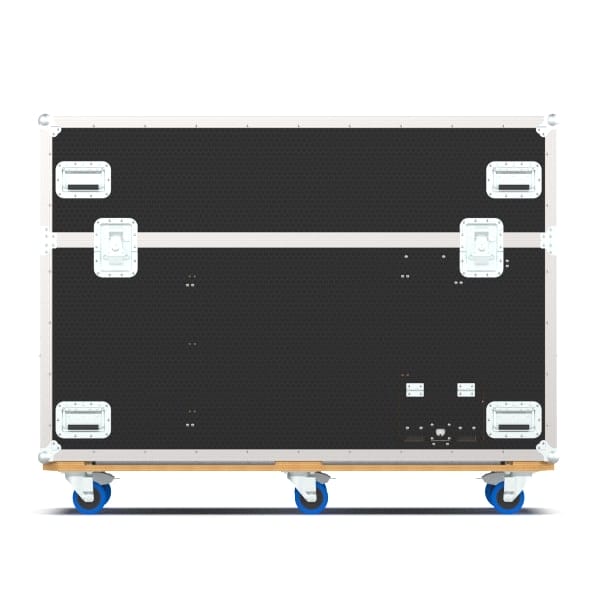

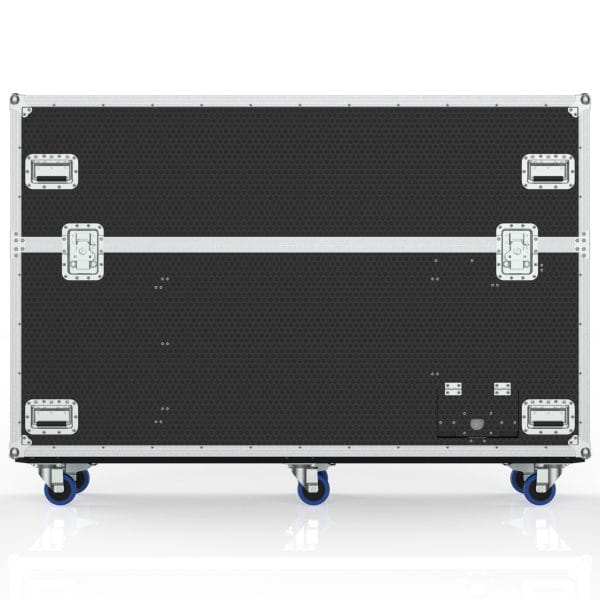

A hatch at the back of the case makes it easier to access this motor to power and maintain.

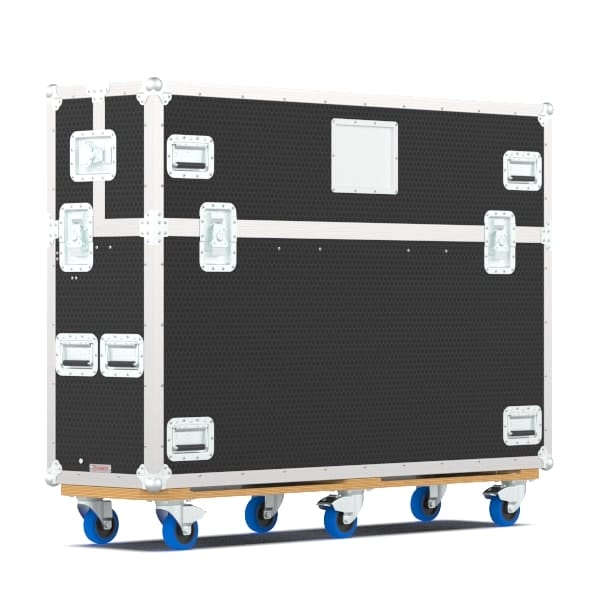

The only thing that could make life easier is if the case is able to magically put itself into your truck, but instead we have 8 steel handles along all sides to make it easier to be carried by multiple people.

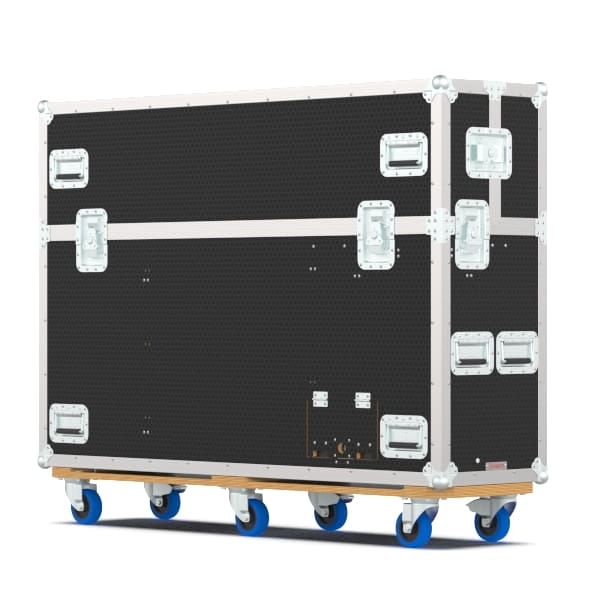

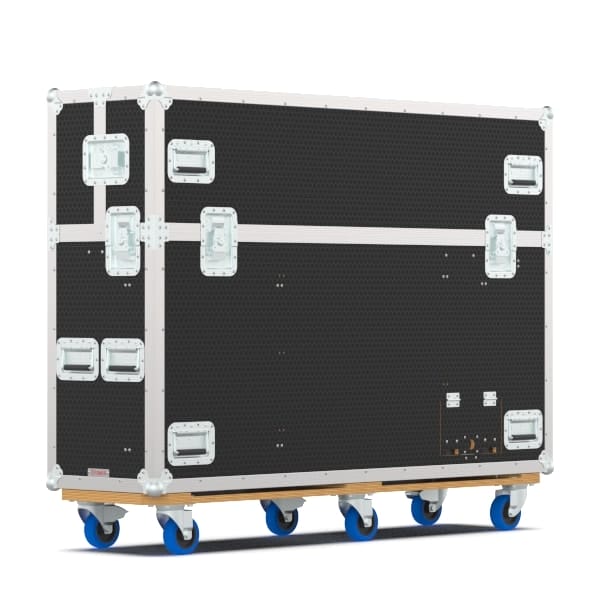

All of this sits on top of a sturdy 18mm thick plywood castor board and castor wheels that are rated 150kg each.

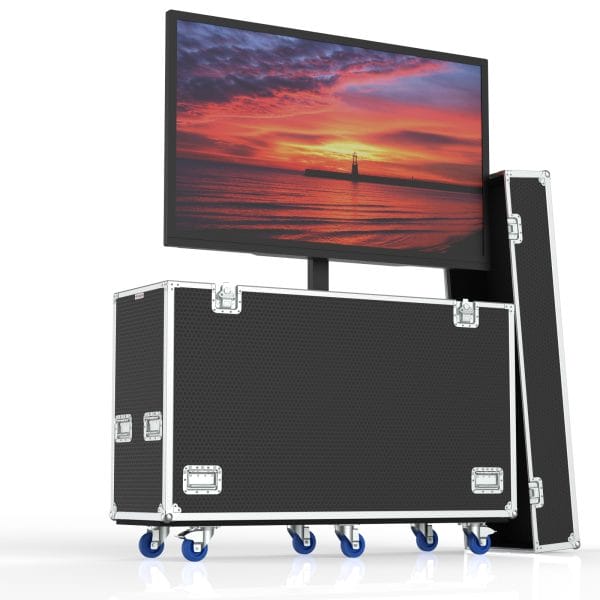

The Rhino 1000 motorized lift used in this screen case is designed with 60Kg safe load limit for large screens of 65″ and above. The lift has a collapsed height of 650mm and a lifting range of 1000mm. The system is completed with both a wired control as well as a wireless
remote.
This screen case has a gross weight of 120Kg including its built-in lift. Although, it is mostly handled with forklift, lifting it upstairs or on to a platform might not be avoidable. As a result, the heavy duty 18mm castor board has multiple cutouts for bottom grabbing. On top of that the case has plenty of handles around it for handling purpose.
Durability
Our custom built flight and road cases are backed with life time guarantee. Our transport cases are built by experienced case builders using premium hardware and panels.
Customization
Our case designers are experienced with case designs. 3D scanning technologies and CAD software enable them to accurately design and visualize the cases before production.
Precision Manufacturing
We invest in the best technologies in case making industry including CNC routers, foam cutters, laser cutters, pneumatic aluminum cutting machines, hole punching machines, etc. These tools help to ensure manufacturing accuracy and consistency.
Value to Customer
Production automation using new technology and reduce labor cost by embracing an "Local workshop plus Overseas Factory" model allows us to provide better value for our customer. Covering both urgent and non-urgent orders while not compromising on quality.
YOUR CASE IS OUR CASE
We put a lot of efforts in our case designs as well as built quality and workmanship. We design our cases to be long lasting, easy to use and appreciated by our customers.
We always appreciate comments and suggestions from our customers. We put them on priority for future updates and make them part of our continuous improvement program.
We process all ideas and improvements shared by our clients through a systemized channel which eliminates the chances of error and enhance the quality of our product.
The extensive quality testing procedures at each step of the life of case enable us to maintain the quality and functionality of product.
The Smart screen case features:

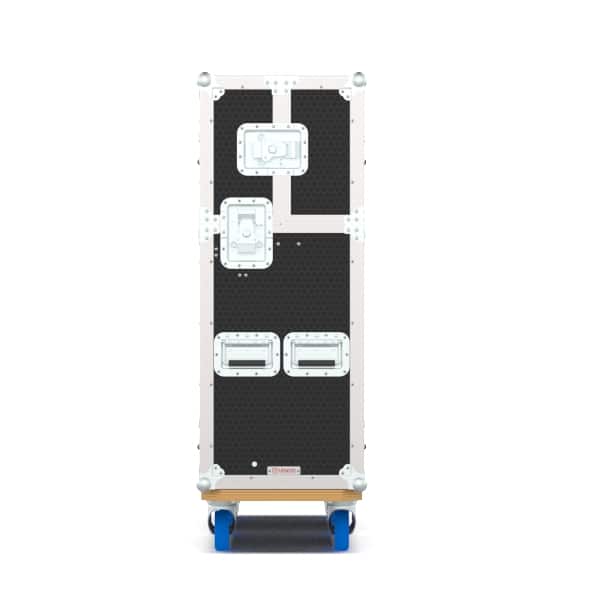

- Corner handles on lid as well as at 4 corners of the bottom case for handling purpose
- Penn Elcom hardware and Carjet S2 heavy duty castors for heavy duty use
- P1201 Laminated plywood panel with glossy honeycomb exterior and ABS black interior
- Heavy duty Rhino 1000 motorized screen lift with VESA mount
- Customization on panel color.
Small Wheels, Closer to Edges
The Transport Case with Motorized Lift for TCL 65C715 65″ Display is unique in its ability to provide comfort, elegance and ease of mind for TV production professionals. The case provides long lasting protection,easy transport and compact storage design.
