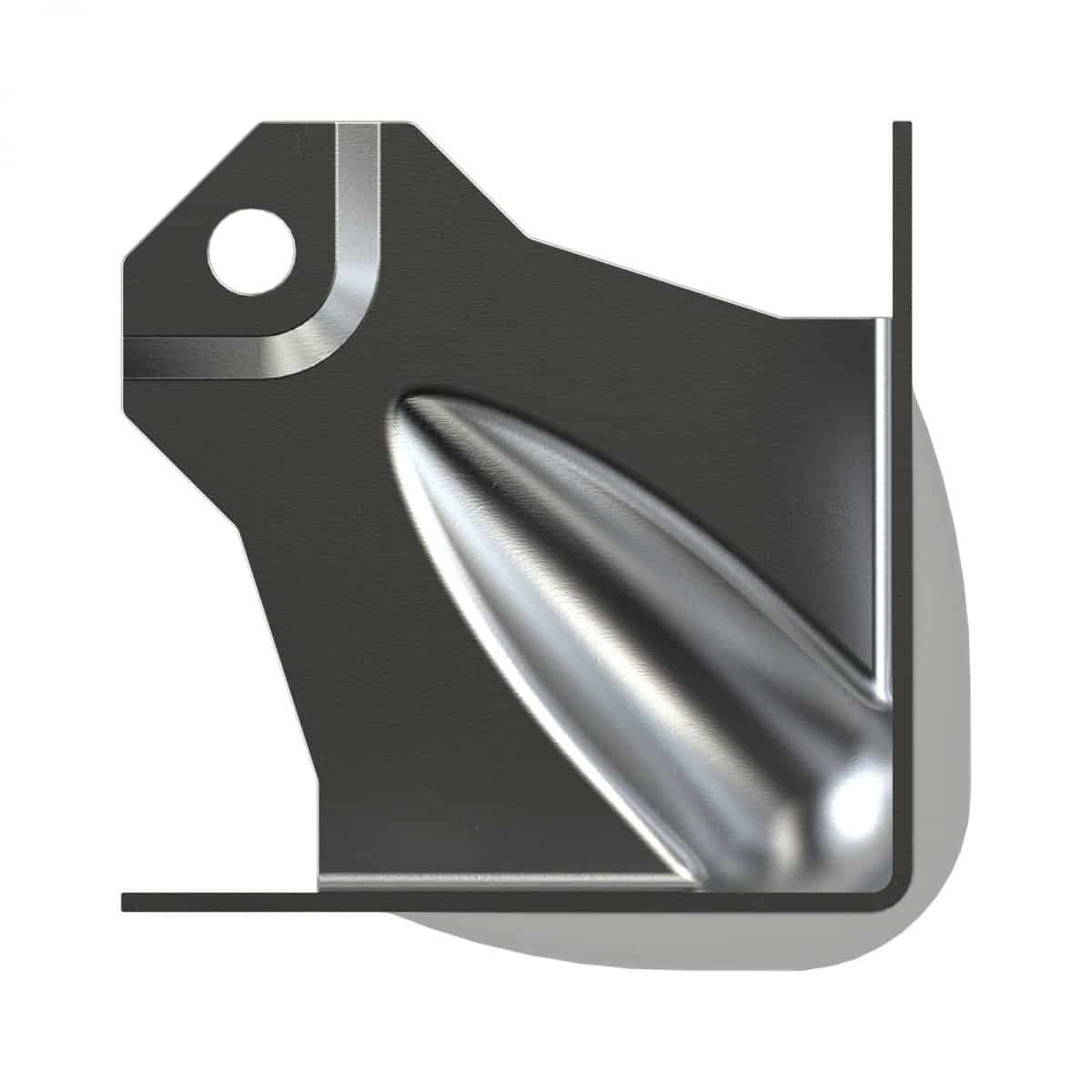

Opposite side view of ball corner showing symmetrical leg design and flush bottom edge.

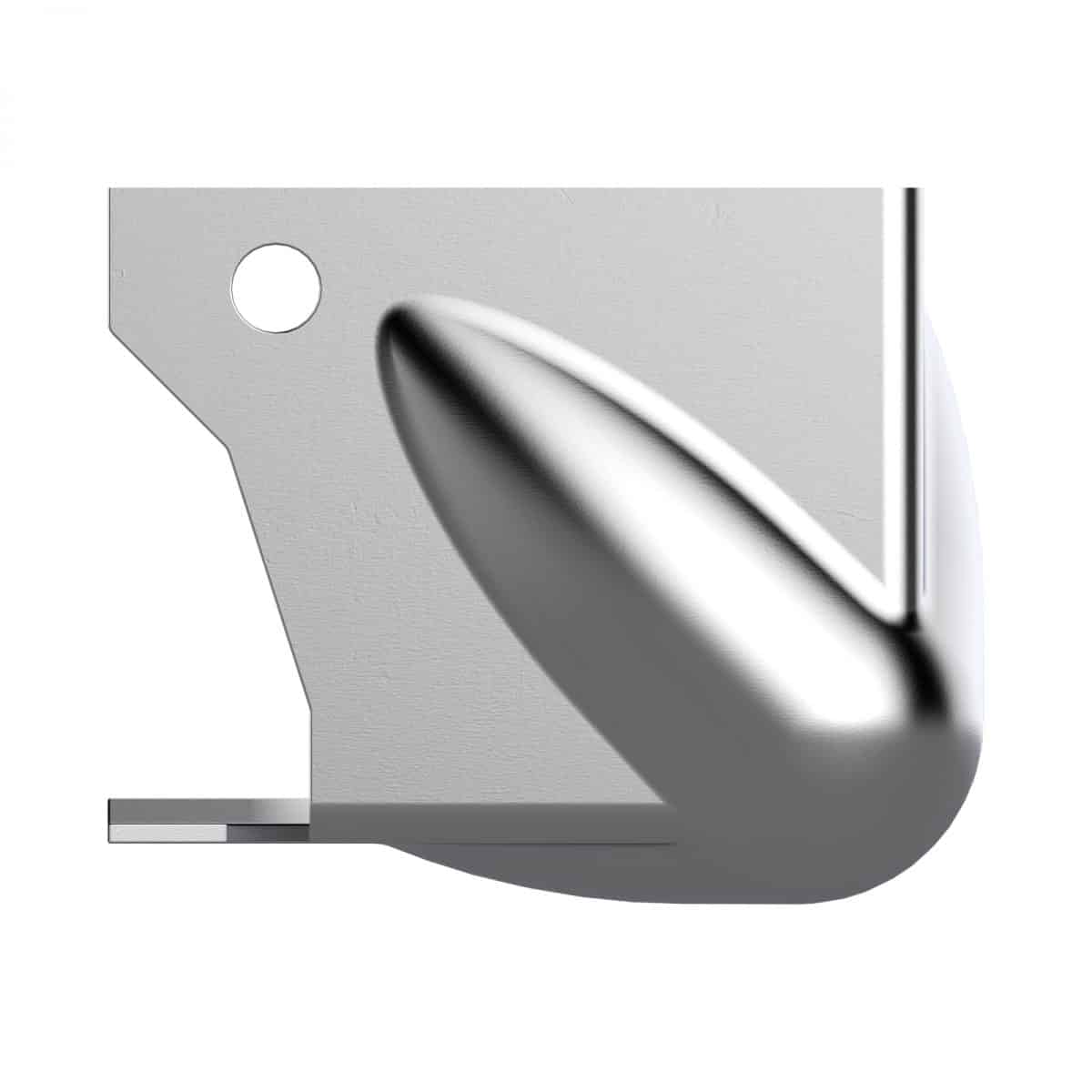

Left side profile showing curved leg and offset designed to align with 30mm edge extrusions.

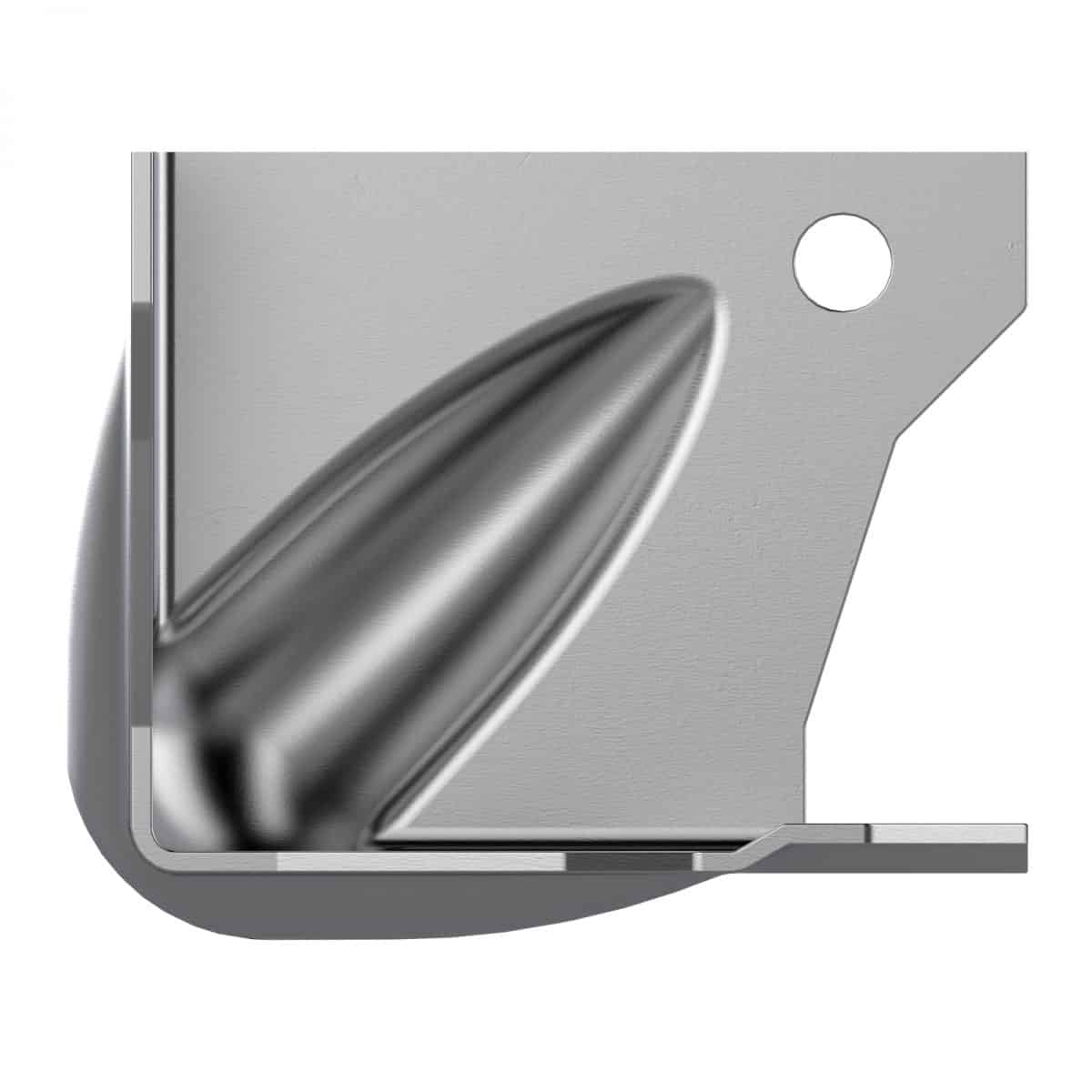

Top view showing the triangular layout and recessed center of the medium-sized ball corner.

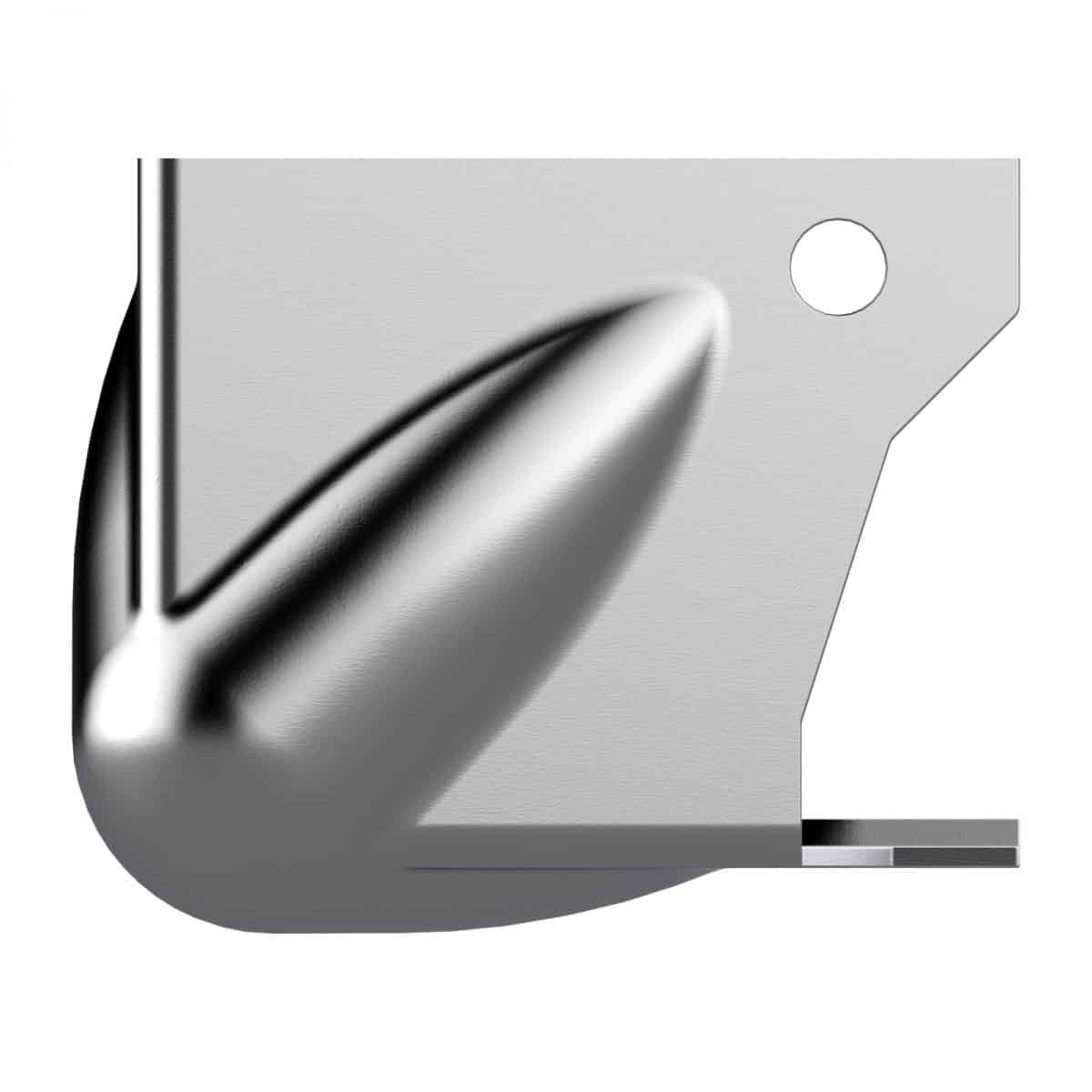

Underside of ball corner showing flush bottom edge and steel construction for road case durability.

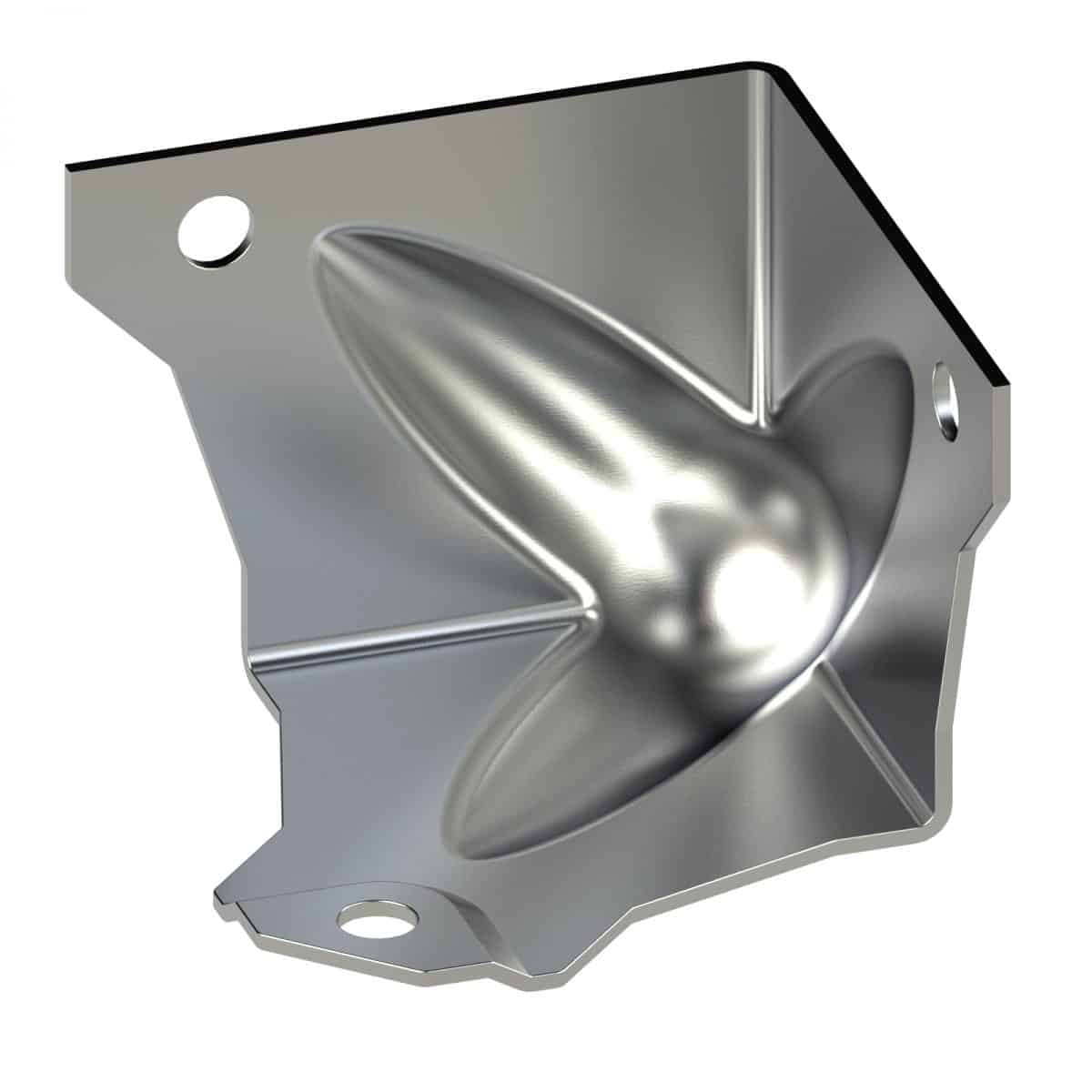

Angled perspective showing three-leg structure, recessed center, and overall compact design.
Click to enlarge
Opposite side view of ball corner showing symmetrical leg design and flush bottom edge.
Left side profile showing curved leg and offset designed to align with 30mm edge extrusions.
Top view showing the triangular layout and recessed center of the medium-sized ball corner.
Underside of ball corner showing flush bottom edge and steel construction for road case durability.
Angled perspective showing three-leg structure, recessed center, and overall compact design.

ARMOR C3331 MEDIUM BRACE BALL CORNER WITH 30MM RECESS

$1.51

ARMOR C3331 Medium Brace Ball Corner with 30MM Recess is a three-legged medium ball corner with 30mm recess for angle extrusions and a flush bottom edge. This Type of Ball Corner is a medium sized Reinforced corner covering the strength properties of ball corner yet providing the low profile aesthetics. Its light weight nature keeps its impact over the weight of  case as low as possible.
It comes with various finishes for aesthetic improvements of the road case. It can support case with three rivets only which can provide enough strength to support plywood panels up to 18mm. Ideal to make medium seized cases with a more streamlined look compare the to large ball corners. The corner may also server as a brace ball corner if the case you are making does not require edge extrusions.

Purchase this item and get 1 Point - a worth of $0.00
Purchase this item and get 1 Point - a worth of $0.00
Enquire Now

SEND US A MESSAGE
    Compare
    Add to wishlist
    SKU: CNR-C3331 Categories: ,
    Description
    Ball corner mounted on road case corner, demonstrating protective fit and streamlined appearance.

    ARMOR C3331 Medium Brace Ball Corner with 30MM Recess cover the joint and seams between edged extrusions while protecting the road case from the usual bumps and sometimes harsh crashes. Triangular Ball Corner also minimizes damage done to other road cases should they crash into them and reduce the chances of scratching their panels.

    Medium Ball Corner with 30MM Recess is made of 1.2mm steel allowing to stay intact while experiencing forceful impacts.

    It also features 30mm offsets allowing it to align seamlessly against the 30x30mm single-edged extrusions that we also offer.

    C3331 Medium Brace Ball Corner with 30MM Recess features only 3 mounting holes of 5mm diameter. This allows it to better distribute the force from impact to minimize damage to the plywood panels and overall structure of the road case. In case of a very forceful impact such as falling from truck or forklift, a strong ball corner such as this one will save the case by not budging easily.

    With this Medium-sized hardware, you will probably be building with 9mm, 12mm or 18mm laminated plywood panels as a general rule. Provided with good craftsmanship, the result should be a very sturdy case that will last many years in the back of a truck.
