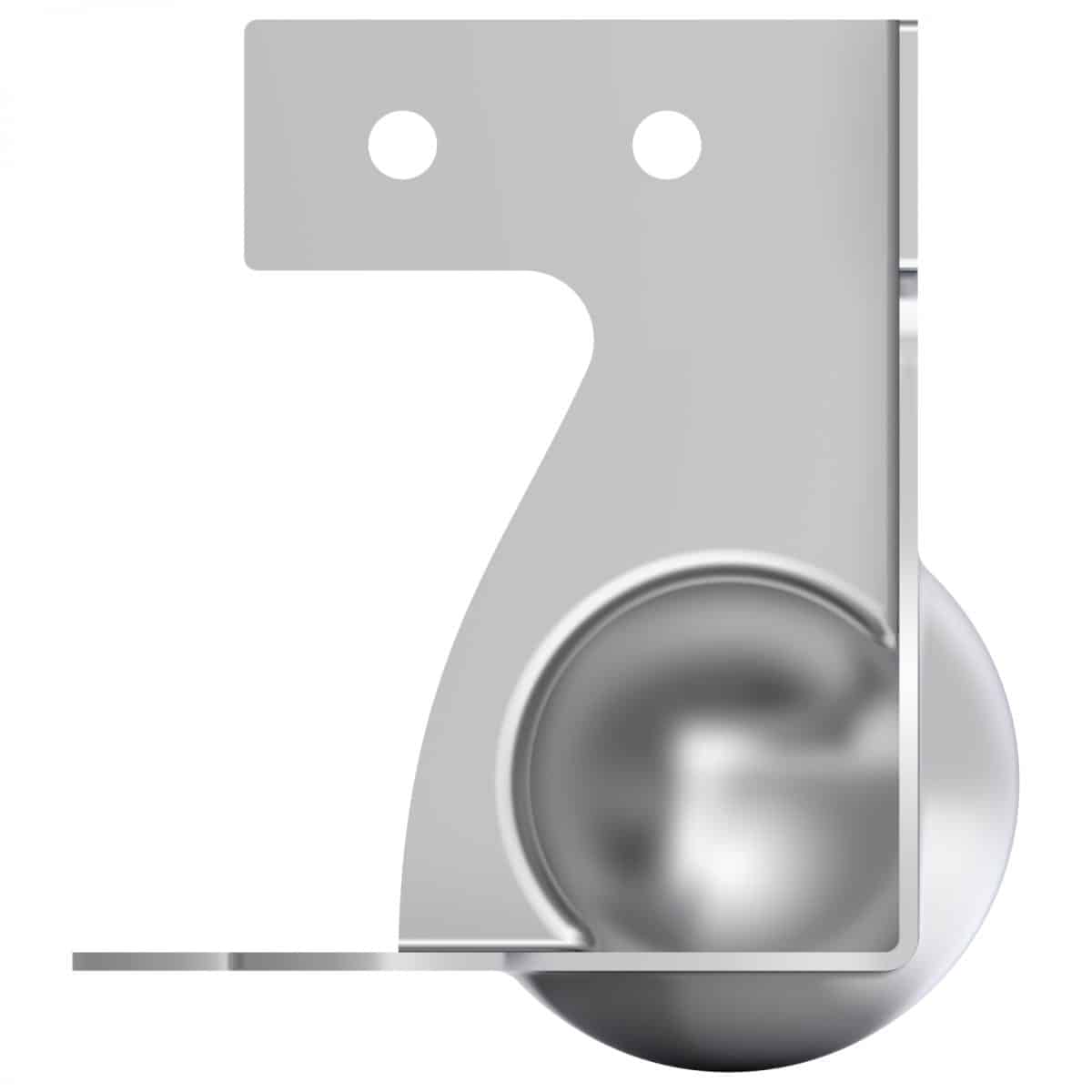

Front view of ARMOR C3151 brace ball corner showing 70mm internal height and integrated brace-ball design.

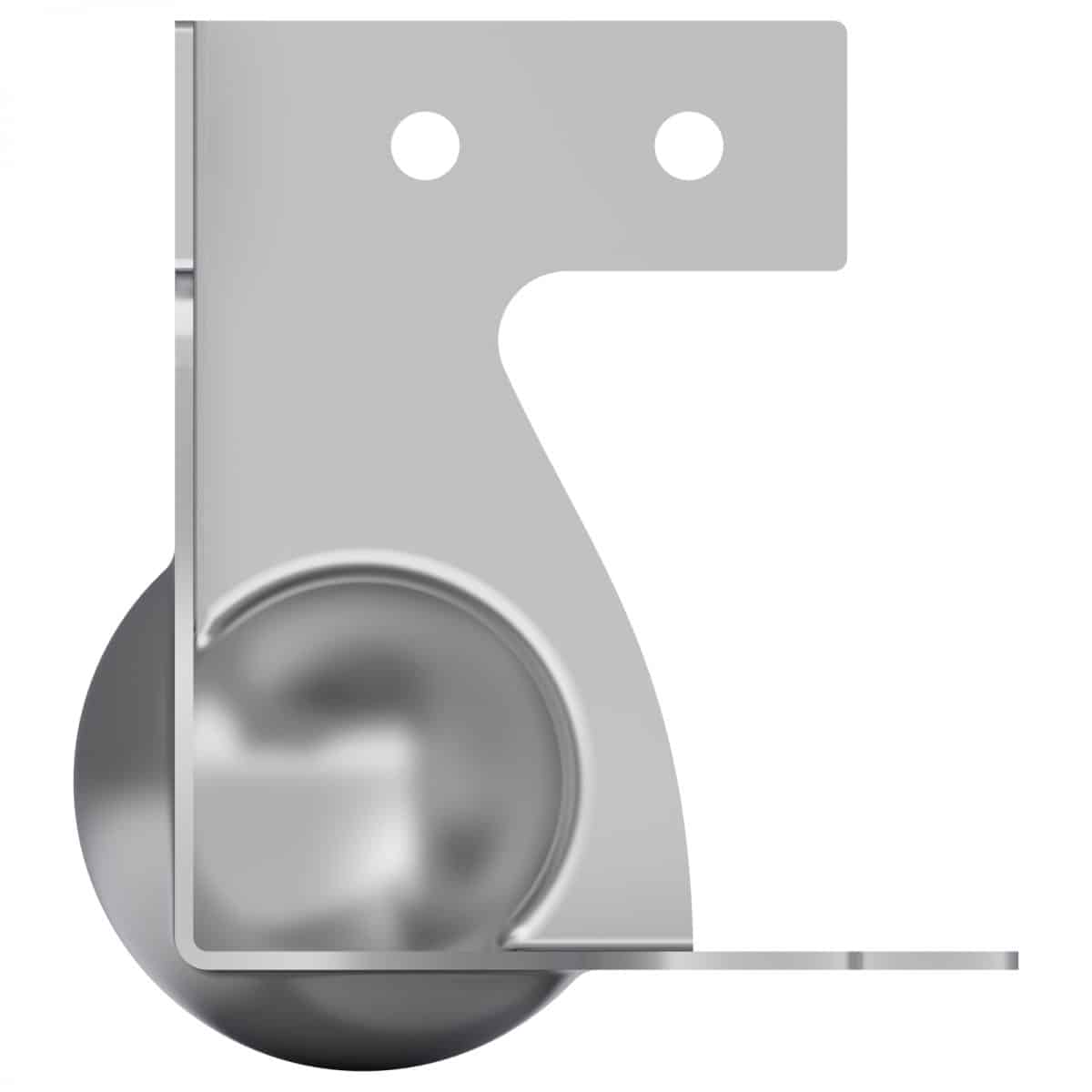

Back view of C3151 brace ball corner highlighting rear profile and compatibility with SA30 and edge extrusions.

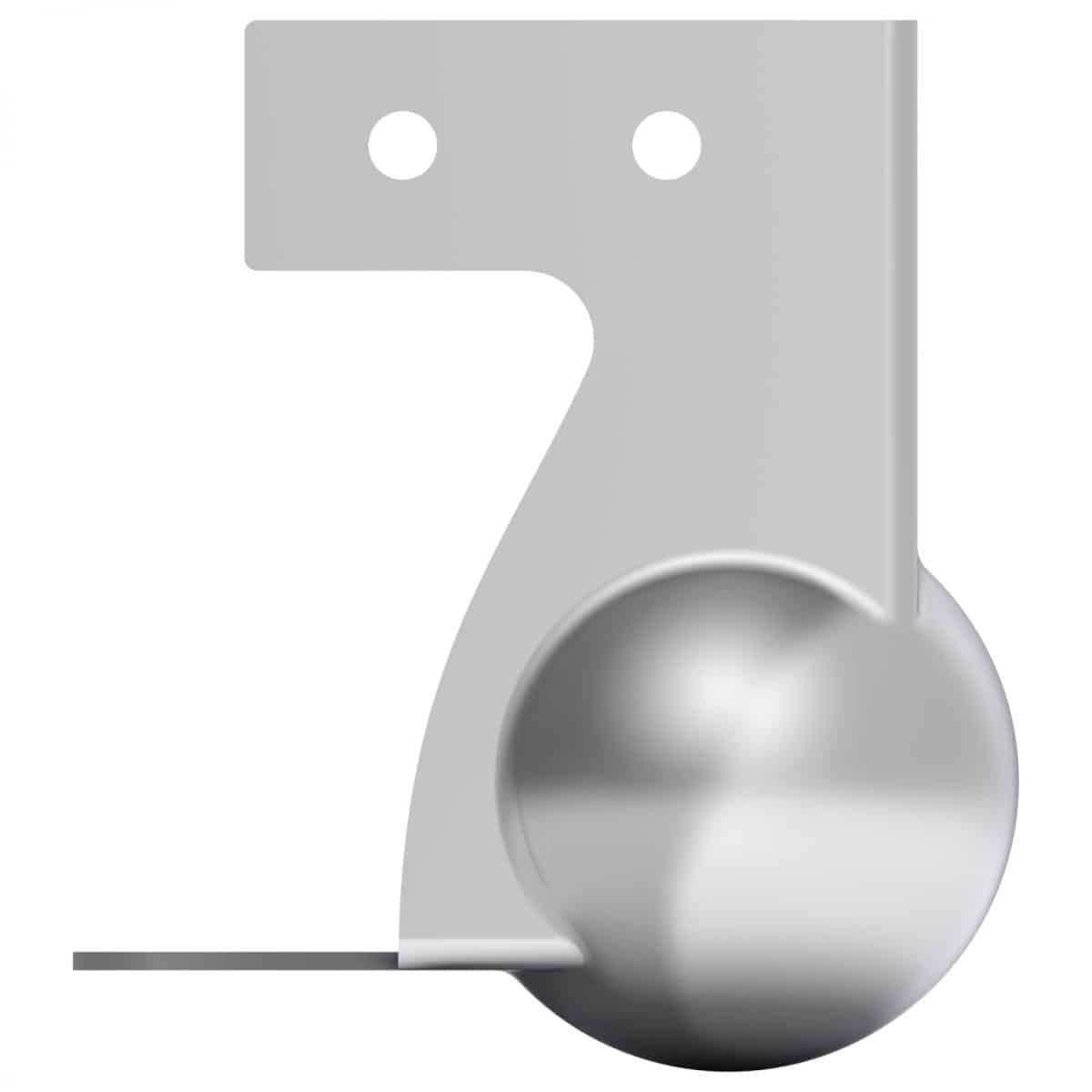

Left side of C3151 brace ball corner showing connection points and structural form for case lid integration.

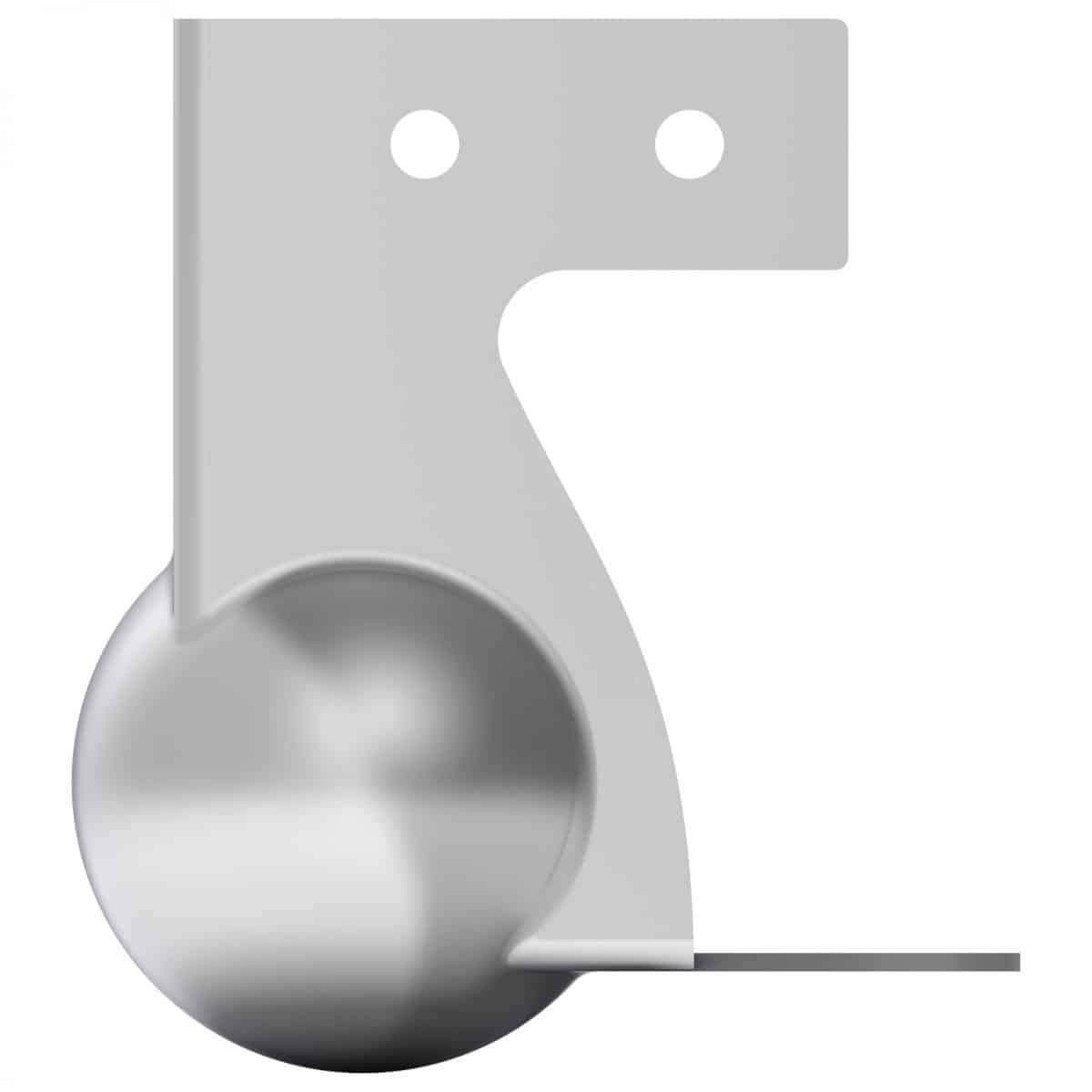

Right side of ARMOR C3151 brace ball corner illustrating edge alignment and extrusion compatibility.

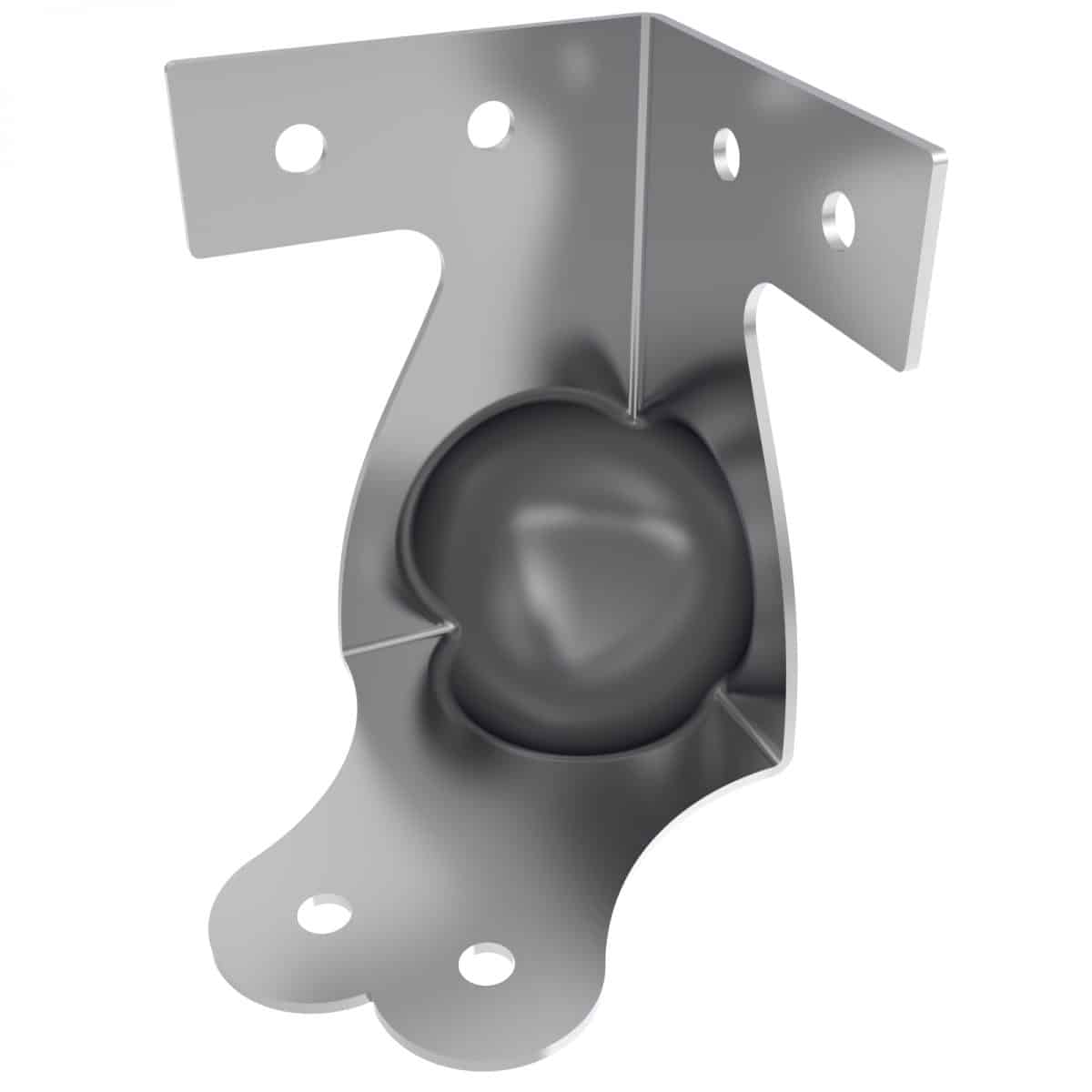

Isometric view of C3151 brace ball corner displaying overall geometry and 70mm internal height for case lids.
Click to enlarge
Front view of ARMOR C3151 brace ball corner showing 70mm internal height and integrated brace-ball design.
Back view of C3151 brace ball corner highlighting rear profile and compatibility with SA30 and edge extrusions.
Left side of C3151 brace ball corner showing connection points and structural form for case lid integration.
Right side of ARMOR C3151 brace ball corner illustrating edge alignment and extrusion compatibility.
Isometric view of C3151 brace ball corner displaying overall geometry and 70mm internal height for case lids.

ARMOR C3151 BRACE BALL CORNER, 70MM LID HEIGHT

$4.95

Large brace ball corner with internal height of 70mm. Suitable  for case lid with SA30 30mm angle extrusion and ET9/EG9 or EH12 edge extrusions, without the need of an extra brace.

Purchase this item and get 4 Points - a worth of $0.01
Purchase this item and get 4 Points - a worth of $0.01
Clear
Enquire Now
Compare
Add to wishlist
SKU: CNR-C3151 Categories: ,
Description

A brace ball corner is a combination of a brace with a ball corner. This desire reduces the number of parts on a case while also strengthening the case.

C3151 brace ball corner has internal height of 70mm and is suited for most case lid, or shall base design. The 70mm internal height suits case lid with SA30 30x30mm or SA35 35x35mm angle extrusion and most edge extrusions.



Technical Doc.
2D Drawing Download
Specifications
Gross Weight N/A
Package Dimensions N/A
Material

Steel
Thickness

1.4mm
Finish

Matt
