ARMOR C2093 SMALL 3 HOLE FLAT CORNER WITH NO OFFSET
$1.10

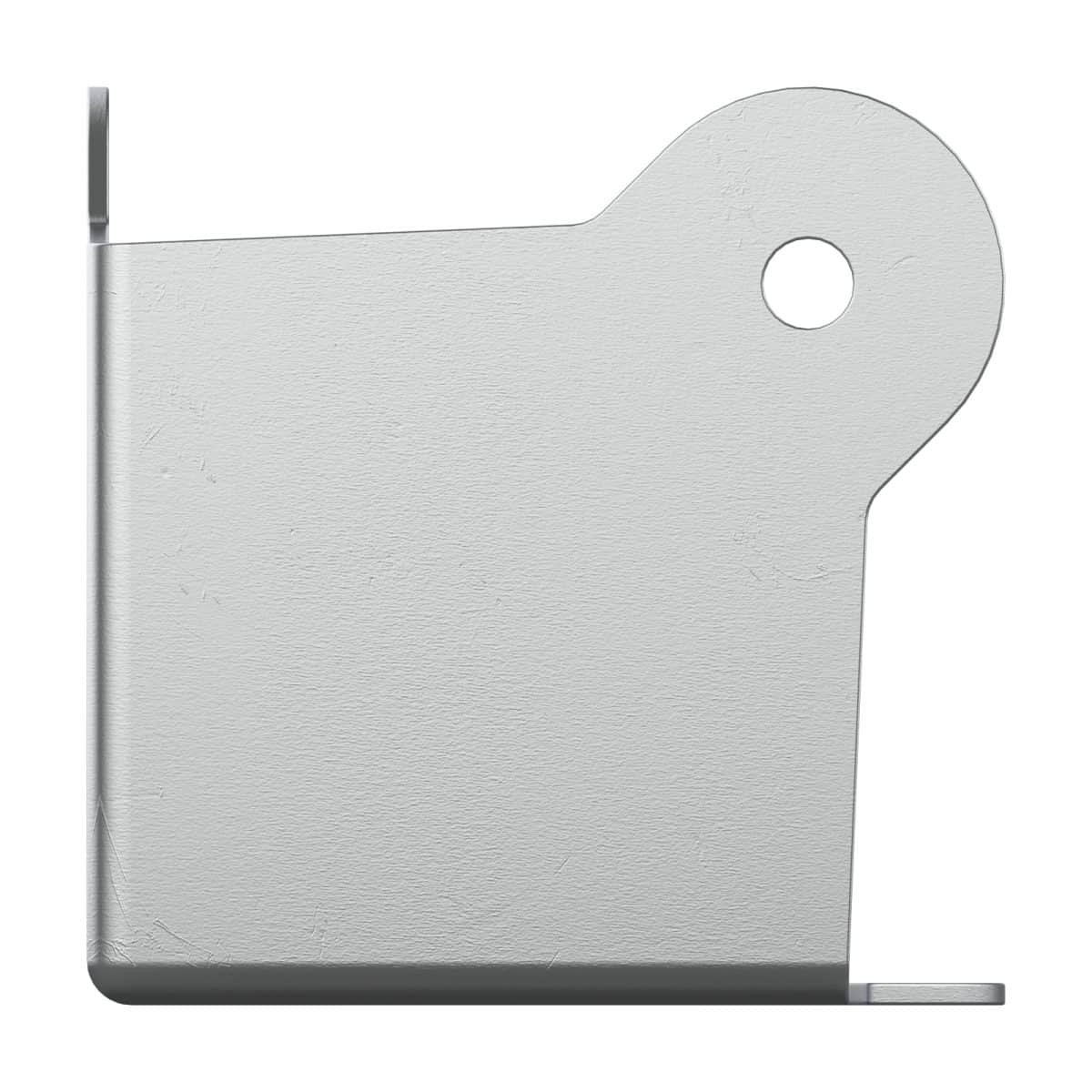

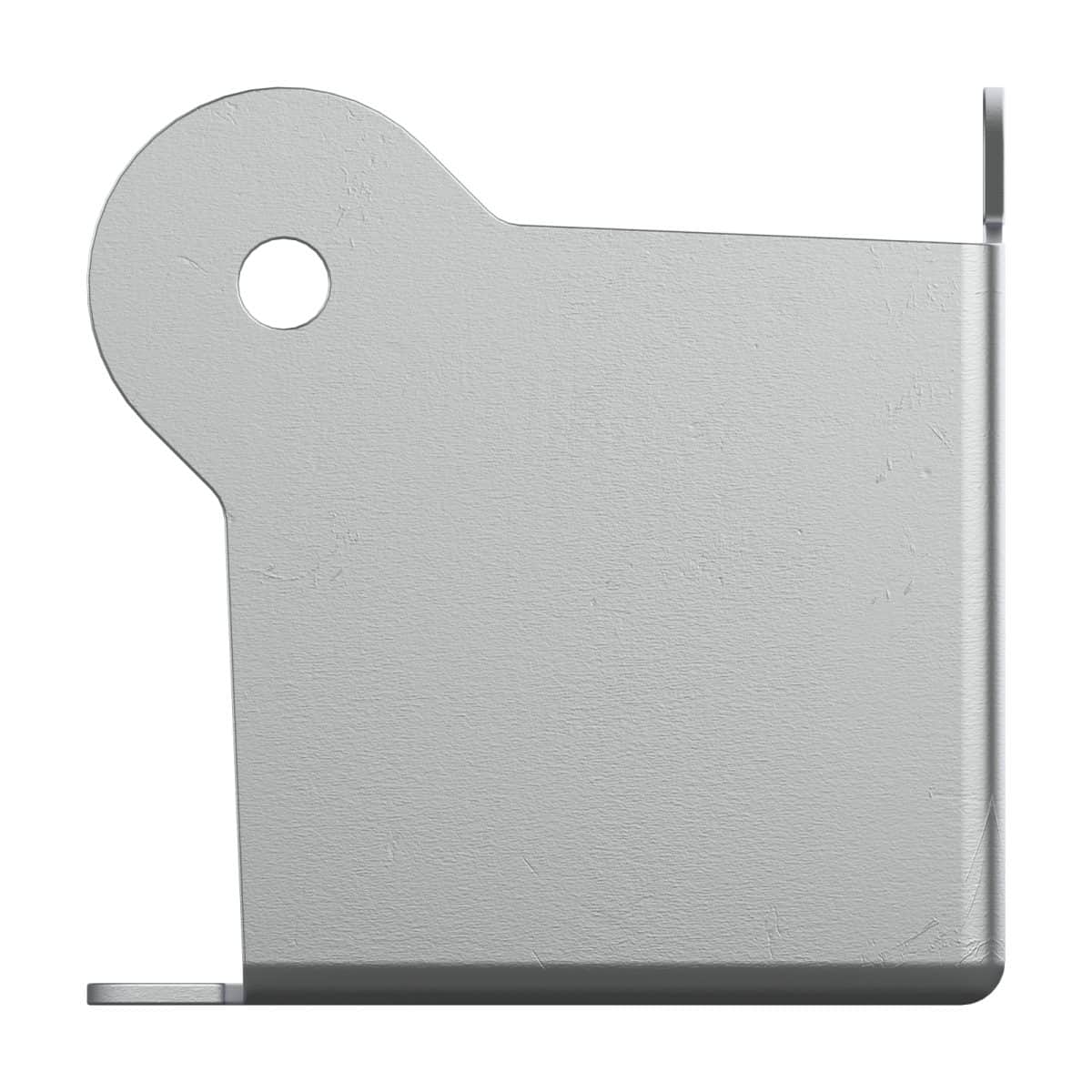

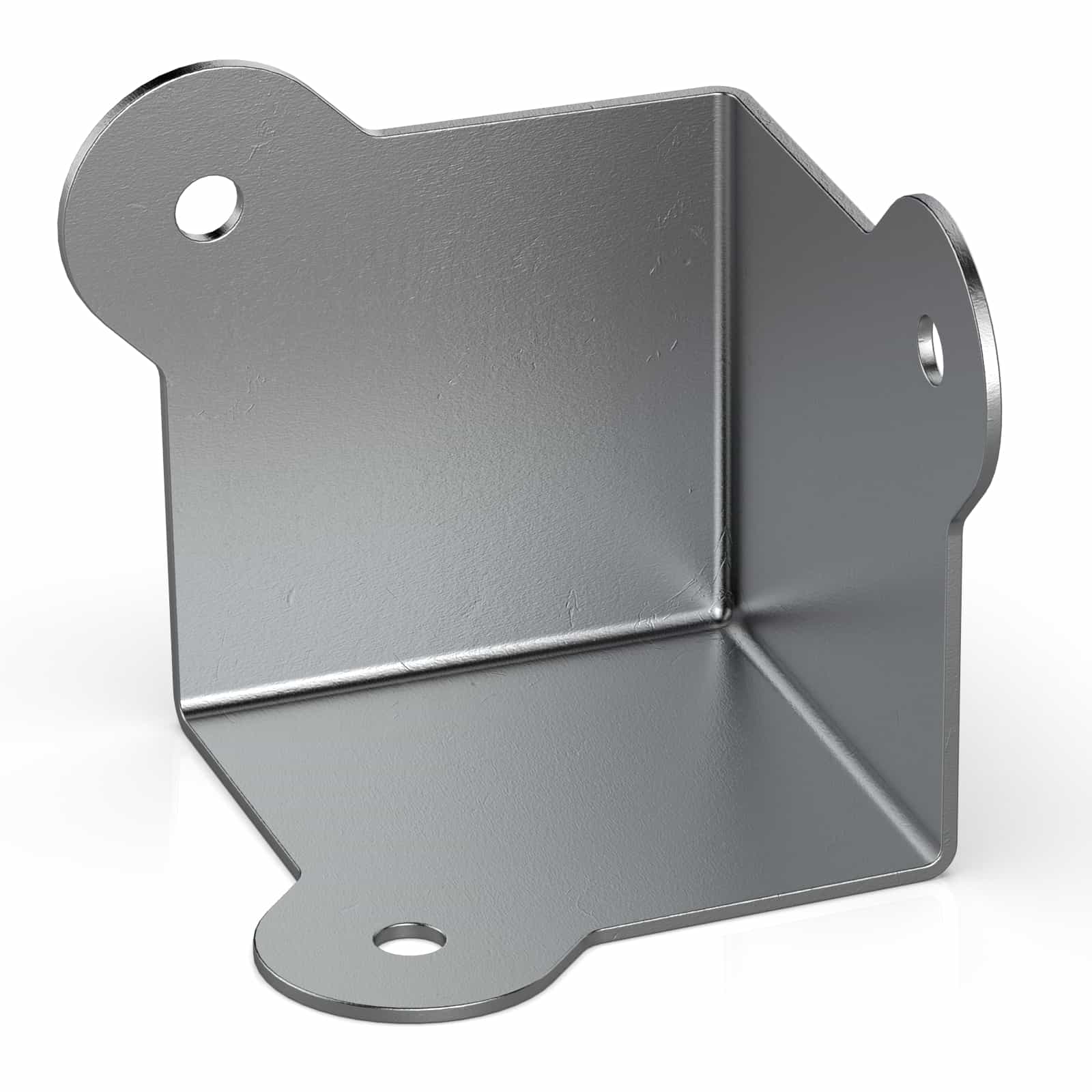

ARMOR C2093 Small 3 Hole Flat Corner is a small flat flush corner made out of Steel and used mainly on small flight cases. It could be used for building case out of Plastic Flight Panel of 6mm and plywood panels of 6mm and 9mm. It provide sturdy joint at the corner of the case built using 3 rivets only. It is completely flush with no offsets.
SEND US A MESSAGE
ARMOR C2093 Small 3 Hole Flat Corner cover the joint and seams between edged extrusions while protecting the road case from the usual bumps and sometimes harsh crashes. C2093 Flat Corner also minimizes damage done to other road cases should they crash into them and reduce the chances of scratching their panels.
This Flat corner is made of 1.5mm 14 gauge steel allowing to stay intact while experiencing forceful impacts.
It also features 30mm offsets allowing it to align seamlessly against the 30x30mm single-edged extrusions that we also offer.
ARMOR C2093 features only 3 mounting holes of 5mm diameter. This allows it to better distribute the force from impact to minimize damage to the plywood panels and overall structure of the road case. In case of a very forceful impact such as falling from truck or forklift, a strong ball corner such as this one will save the case by not budging easily.
With this small-sized hardware, you will probably be building with 6mm or 9mm laminated plywood panels as a general rule. Provided with good craftsmanship, the result should be a very sturdy case that will last many years in the back of a truck.
| 2D Drawing | Download |
| Gross Weight | N/A |
|---|---|
| Package Dimensions | N/A |
| Material |
Steel |
| Thickness |
1.4mm |
| Finish |
Chrome |
Q & A
Ordered A Case?
Depending on which workshop your case order is placed with we have a general lead time listed online as a guideline. Please only choose Guangzhou workshop for non-urgent orders as shipping delays may happen from time to time. We understand it is not fun to keep waiting and we actively manage the orders to be completed and shipped ASAP.
Ordered Hardware & Material?
Generally, they are in stock and shipped within 24 hours from our Auburn workshop.
It happens sometime that we over sell our inventory by mistake. We actively monitor our inventory level to avoid such negative experience. In case it did happen, we will try to compensate with discount.
Related products
ARMOR C2221 SMALL FLAT STEEL CORNER
$1.10

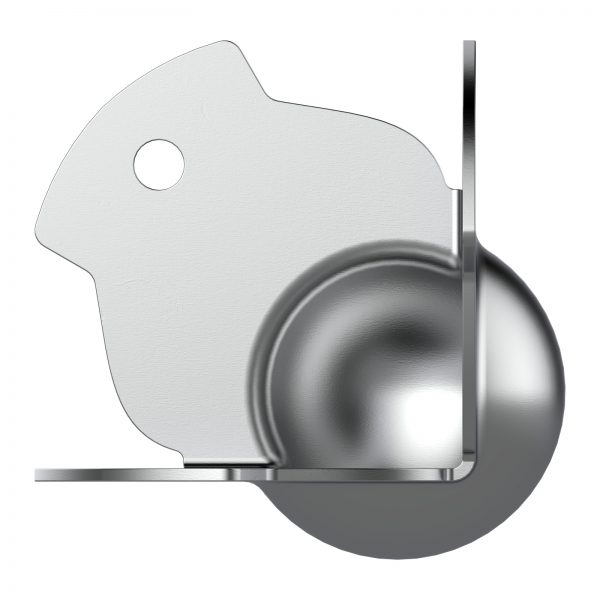

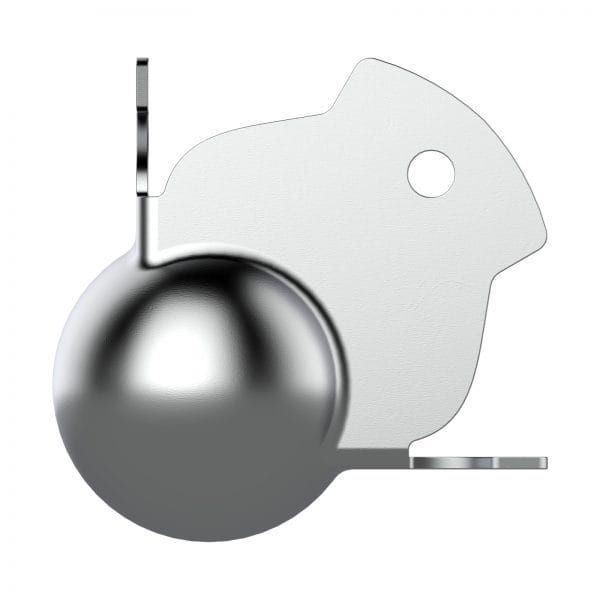

ARMOR C3131 SMALL BALL CORNER, 3 HOLES
