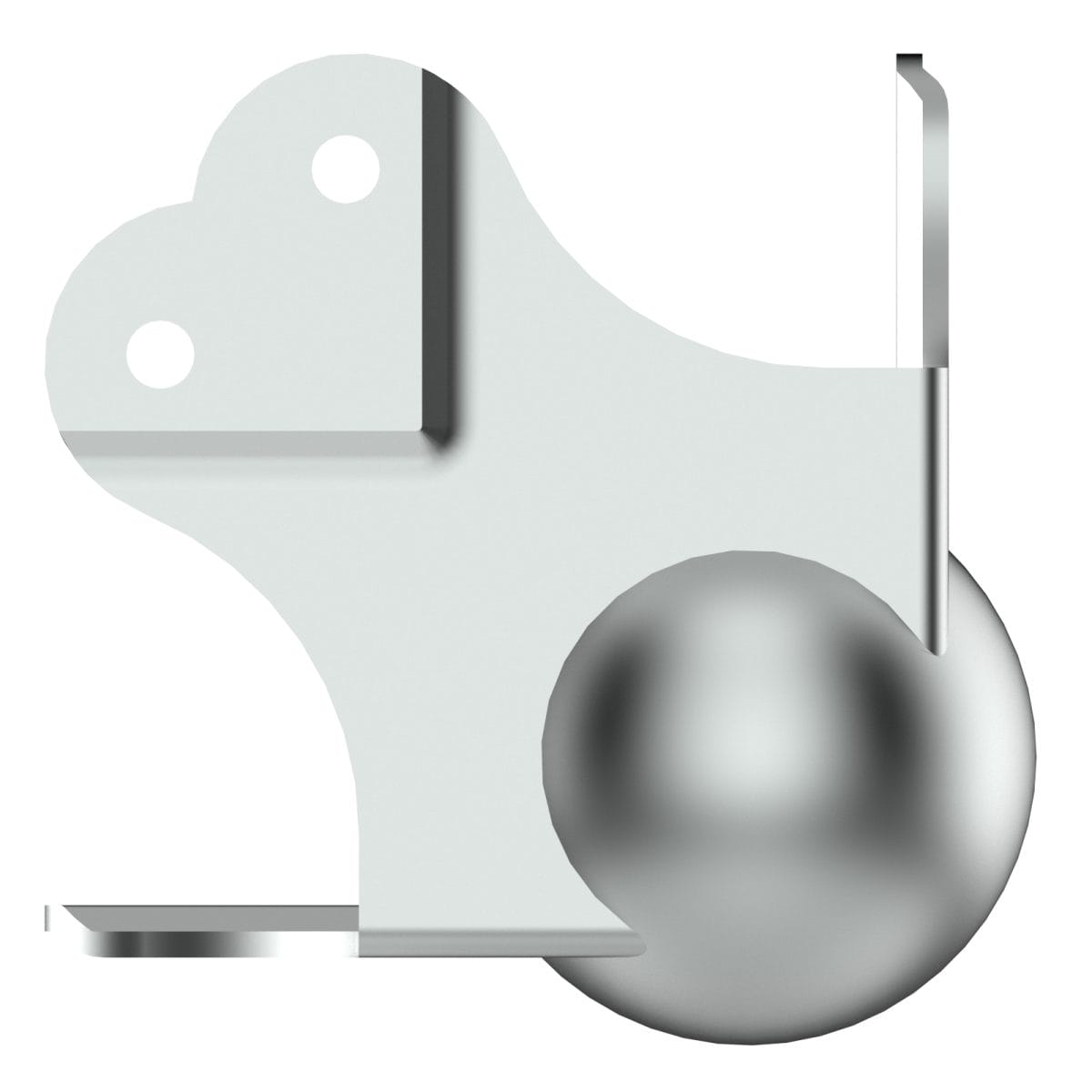

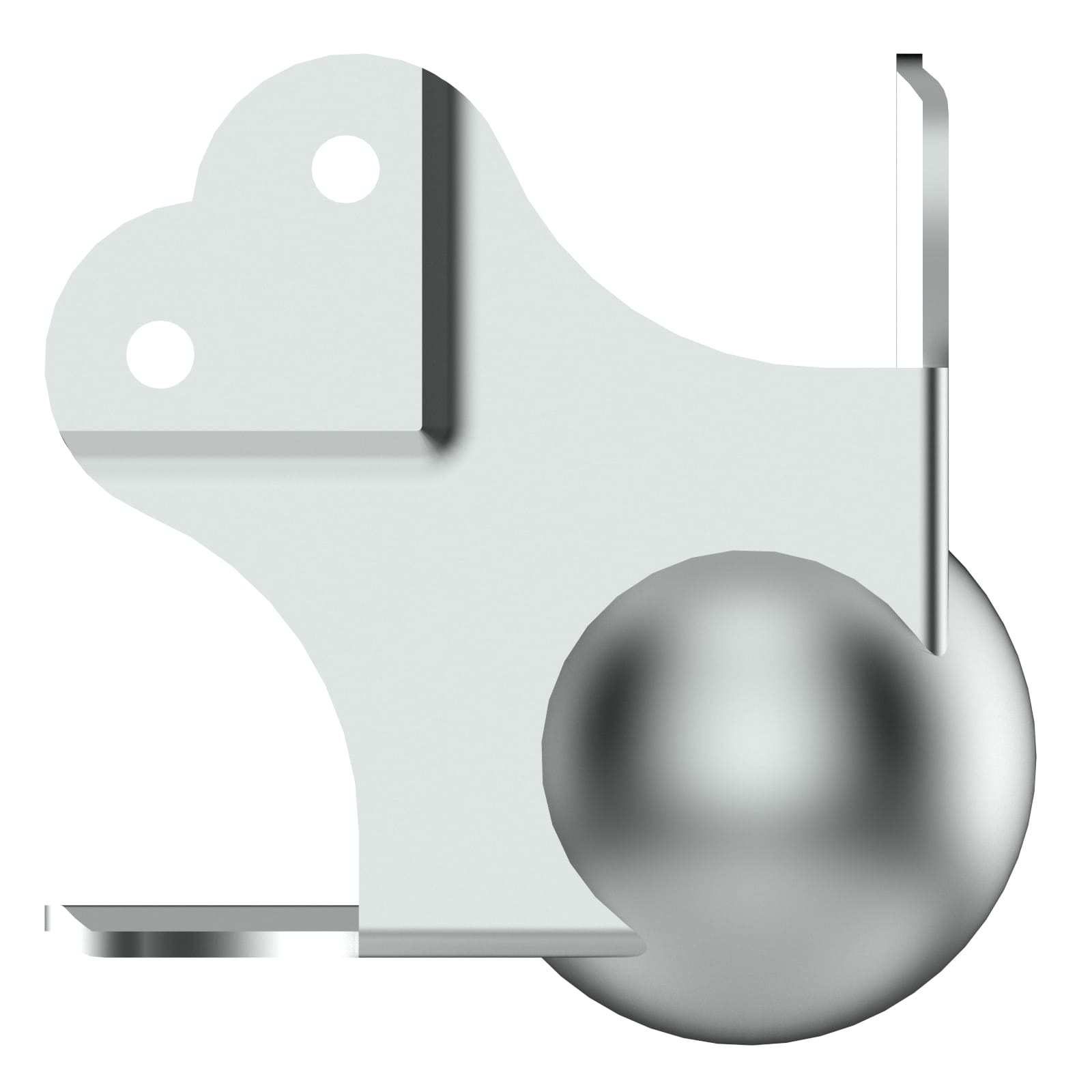

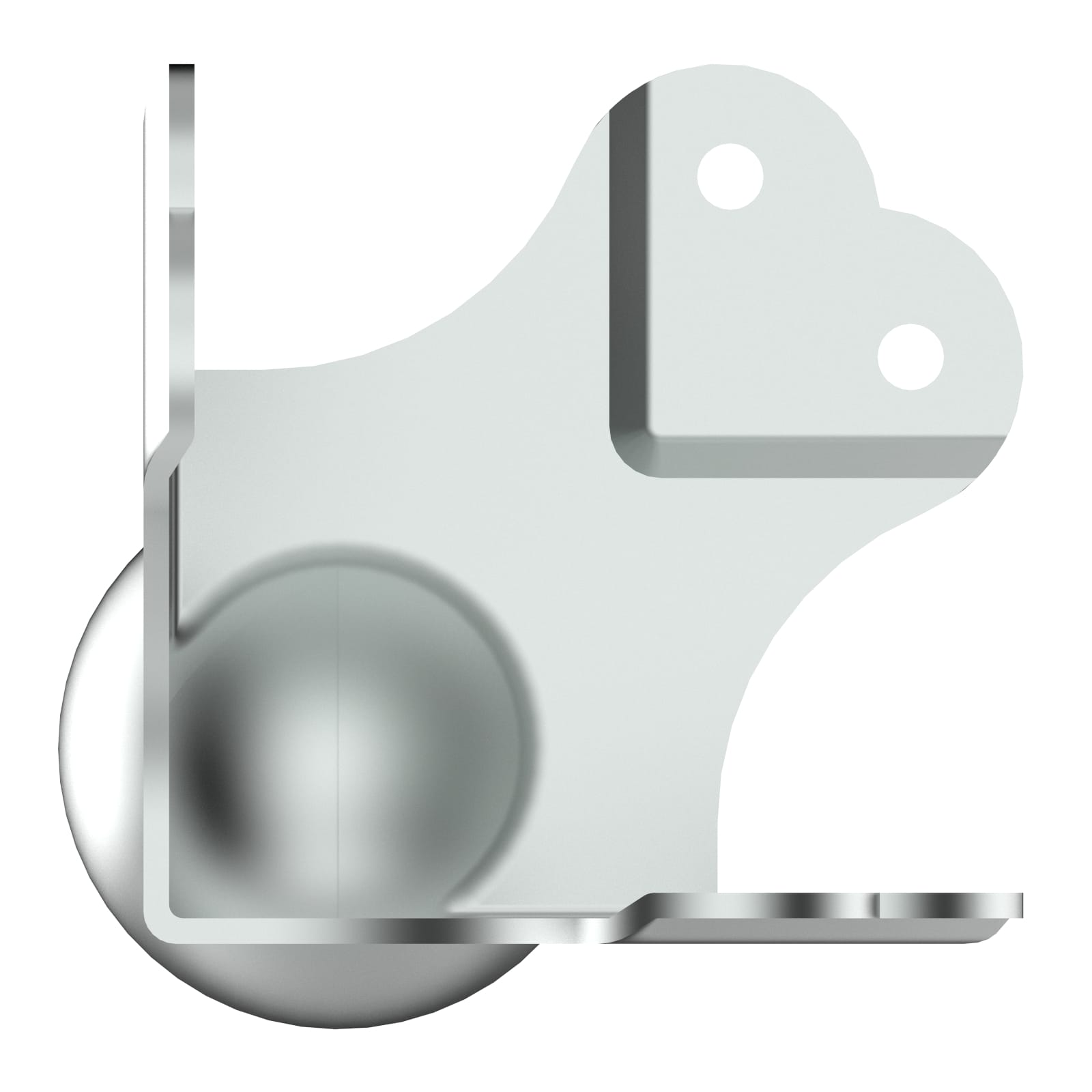

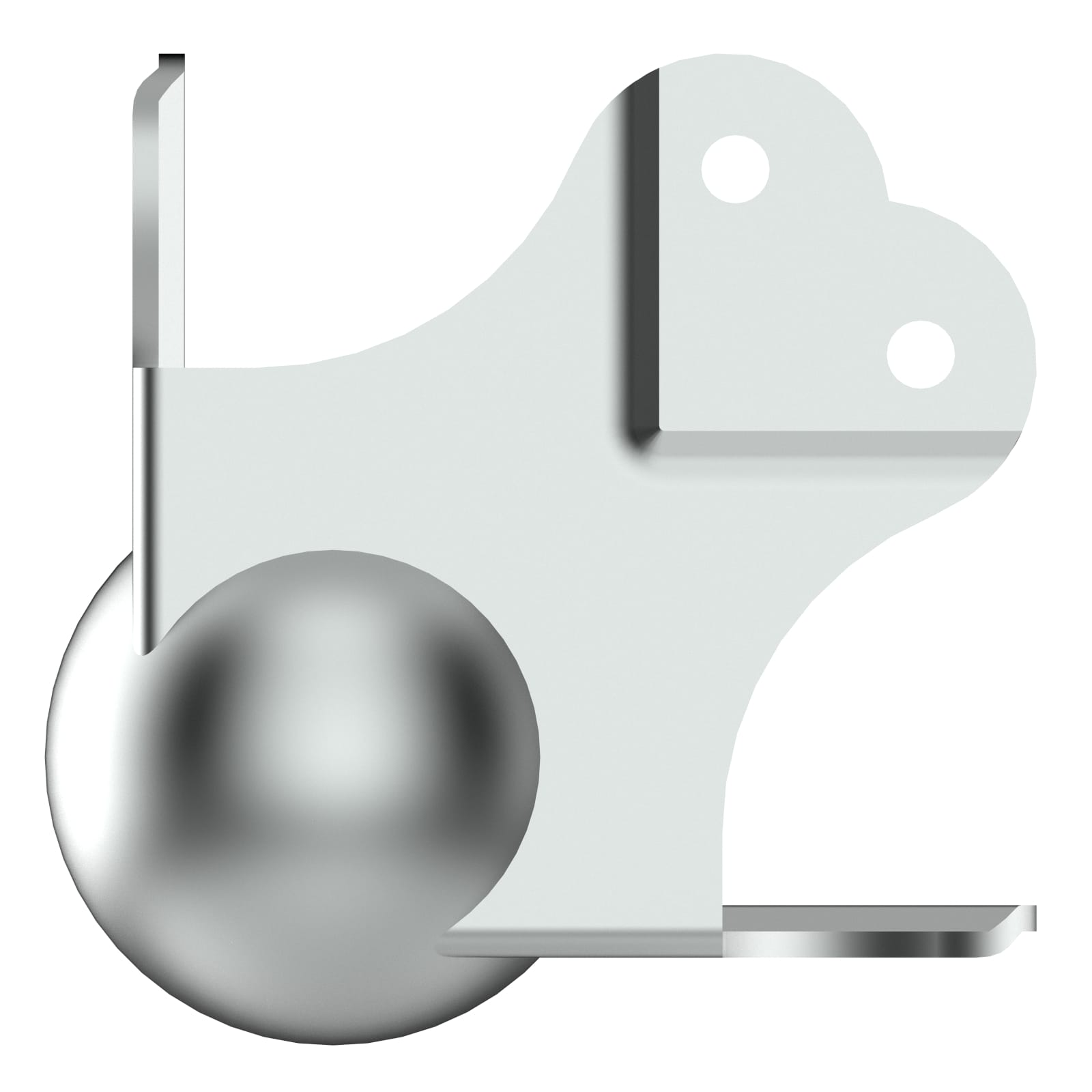

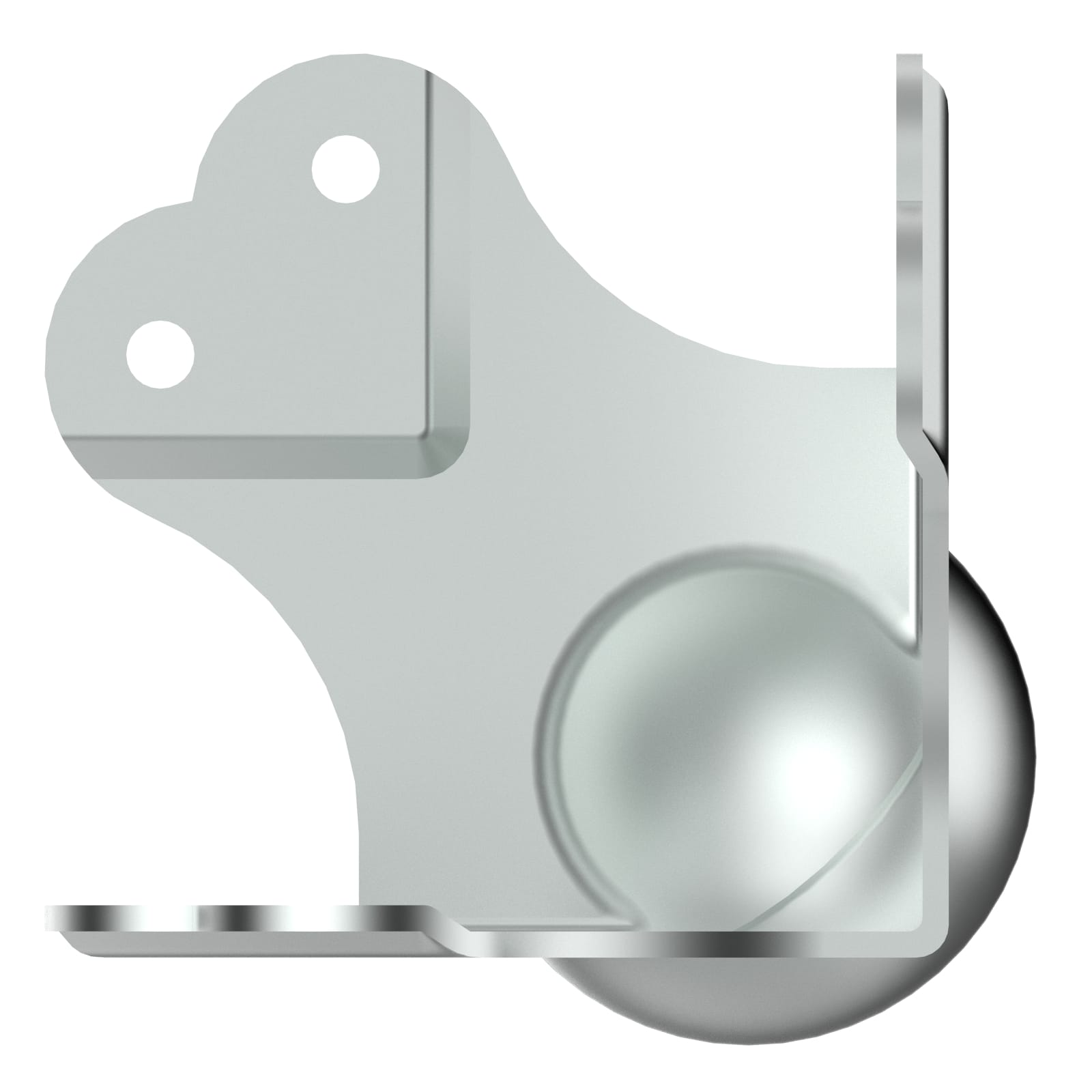

ARMOR C3109 3-LEGGED LARGE BALL CORNER WITH 35MM OFFSET
$6.05
ARMOR C3109 large ball corner with 35mm offsets, designed to fit seamlessly with extrusions on your road cases.
SEND US A MESSAGE
Road case ball corners cover the joint and seams between edged extrusions while protecting the road case from the usual bumps and sometimes harsh crashes. Ball corners also minimises damage done to other road cases should they crash into them and reduce the chances of scratching their panels.
It also features 35mm offsets allowing it to align seamlessly against the 35x35mm single-edged extrusions that we also offer.

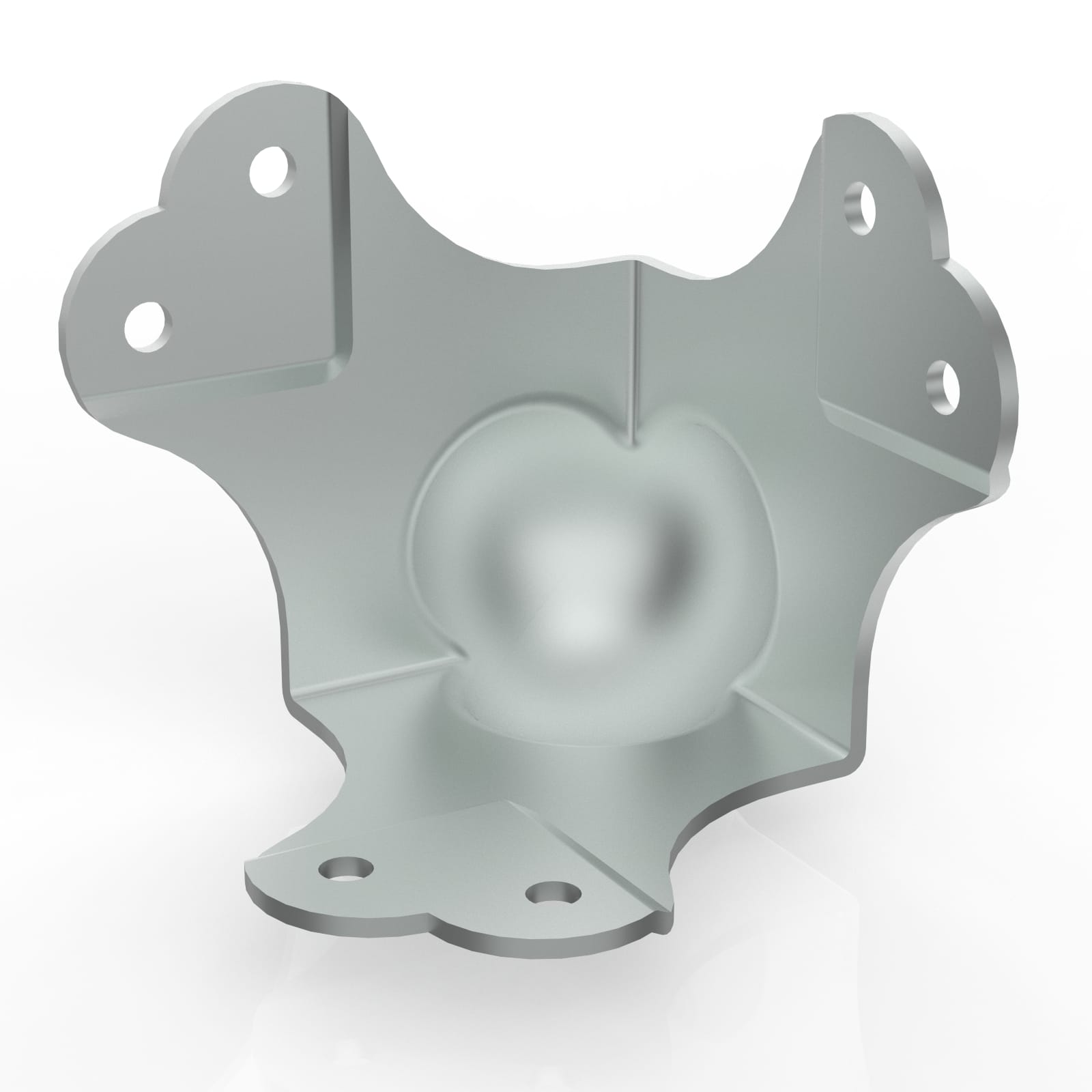

This ball corner features 6 mounting holes of 5mm diameter. This allows it to better distribute the force from impact to minimize damage to the plywood panels and overall structure of the road case. In case of a very forceful impact such as falling from truck or forklift, a strong ball corner such as this one will save the case by not budging easily.
With this large-sized hardware, you will probably be building with 9mm or 12mm laminated plywood panels as a general rule. Provided with good craftsmanship, the result should be a very sturdy case that will last many years in the back of a truck.
| 2D Drawing | Download |
| Gross Weight | N/A |
|---|---|
| Thickness |
1.4mm |
| Finish |
Matt |
