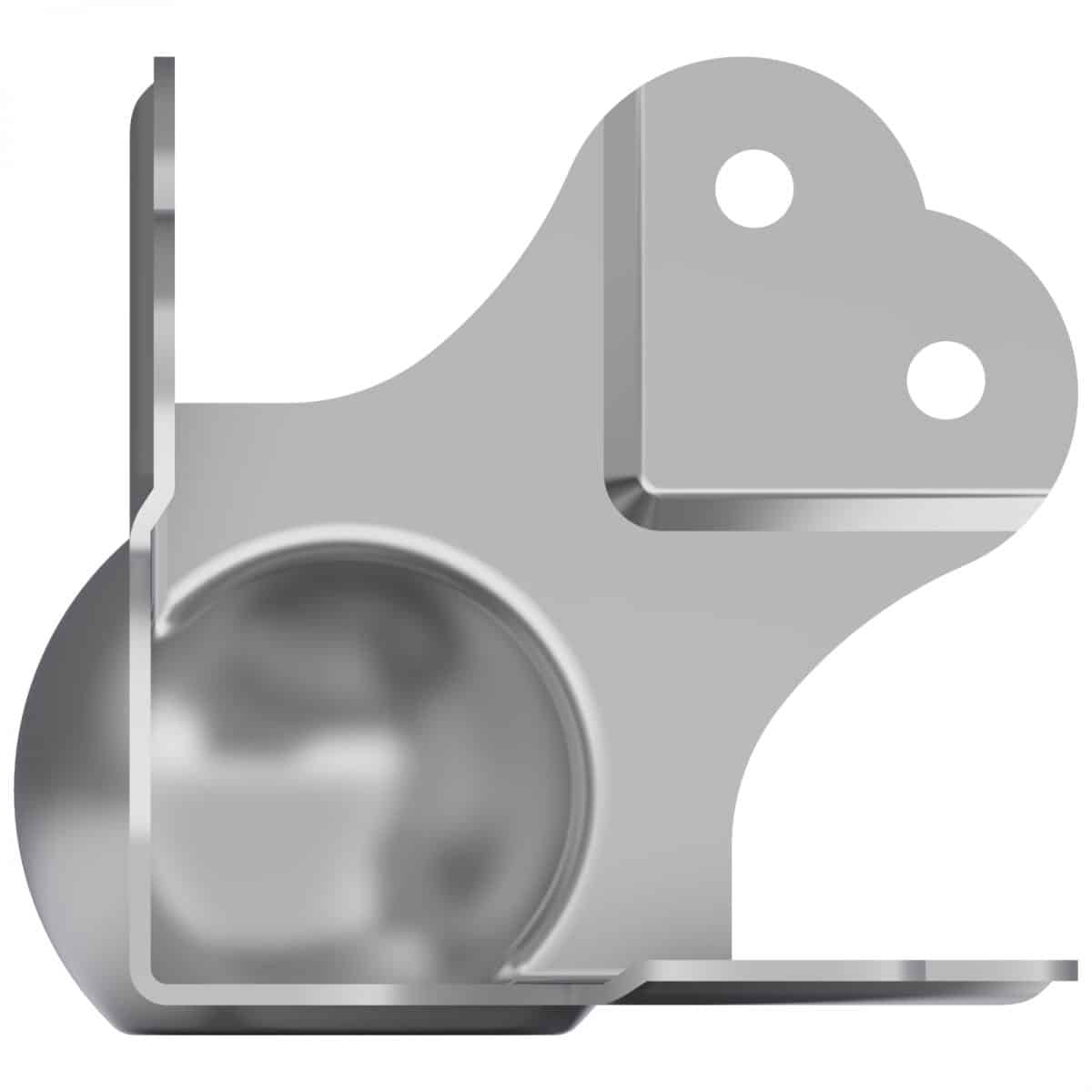

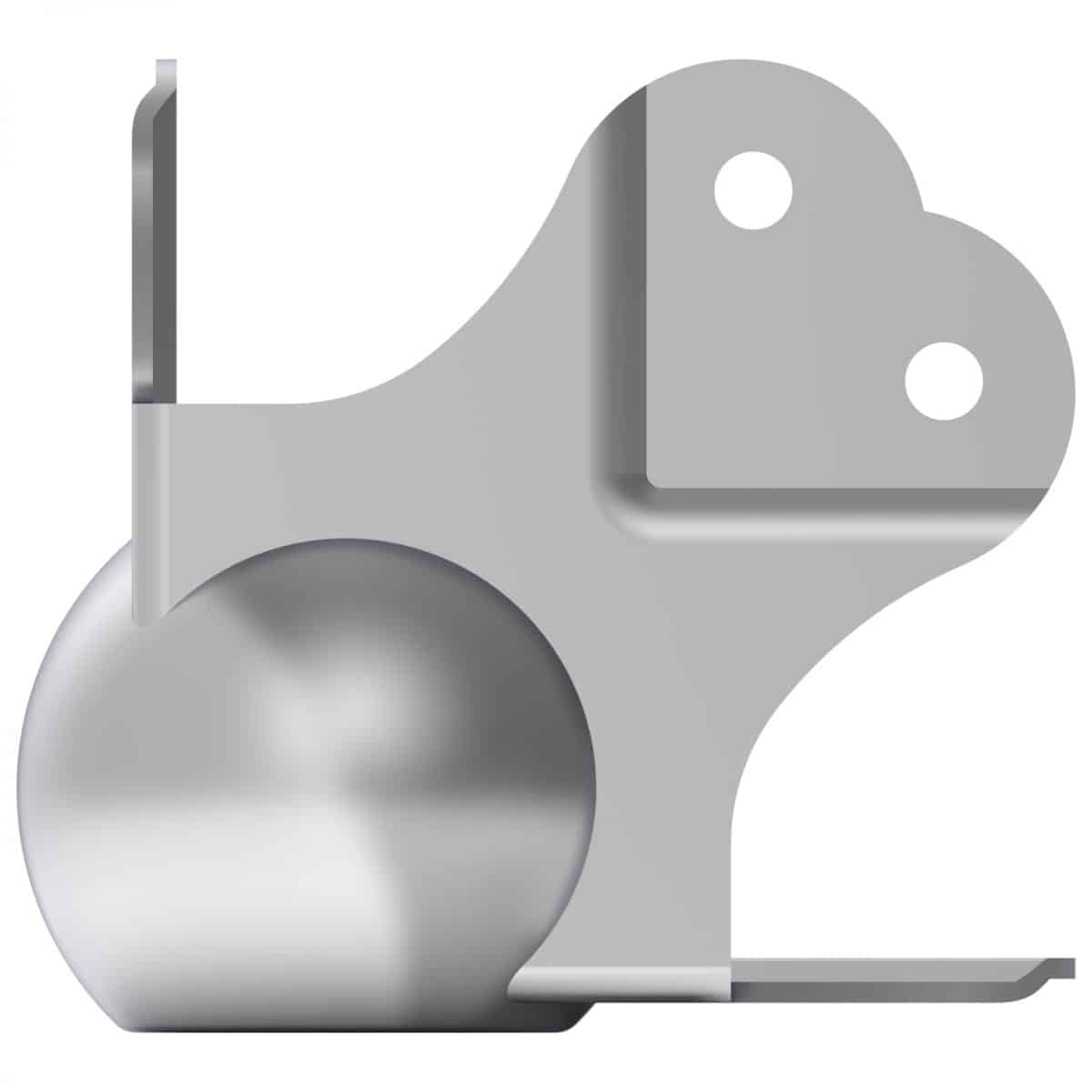

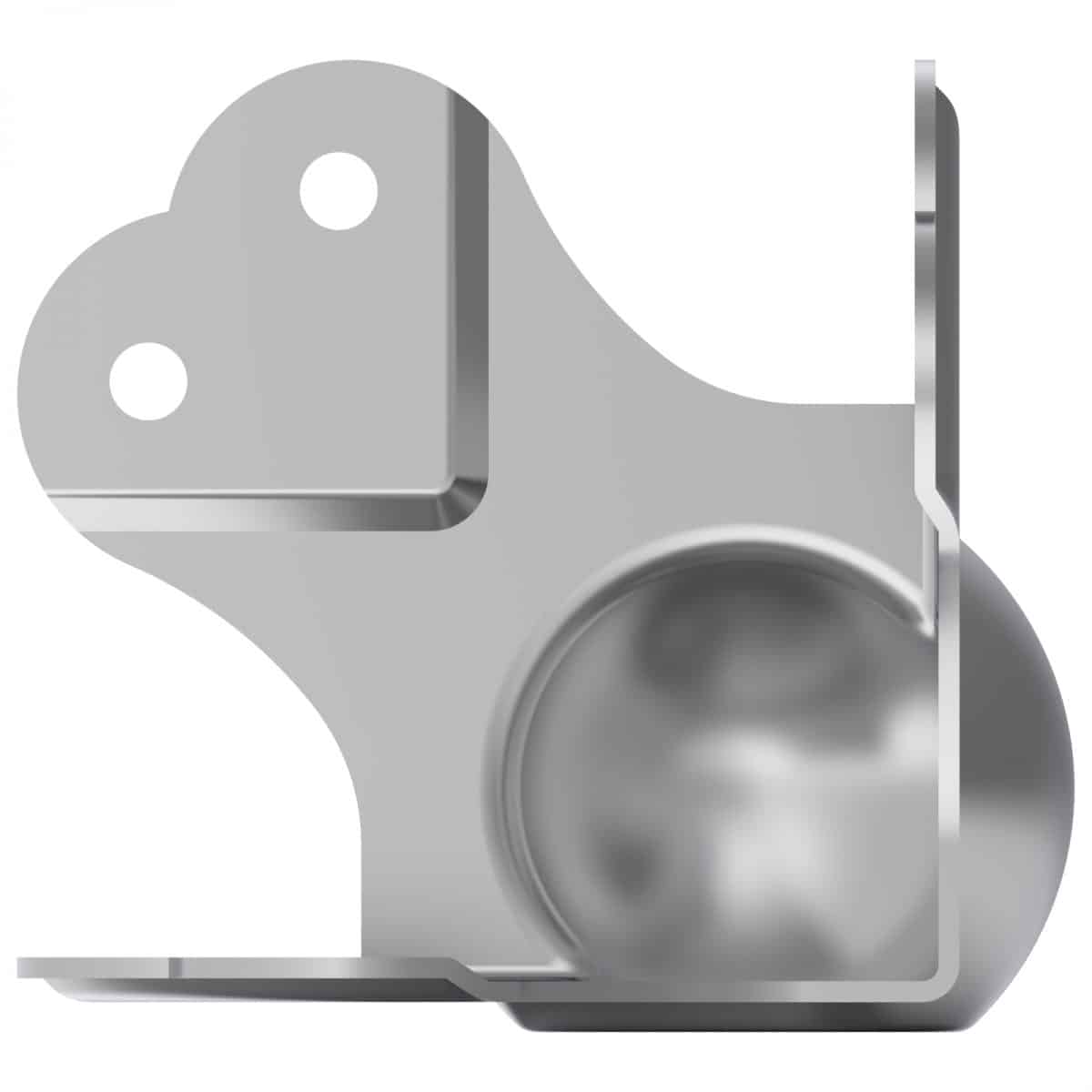

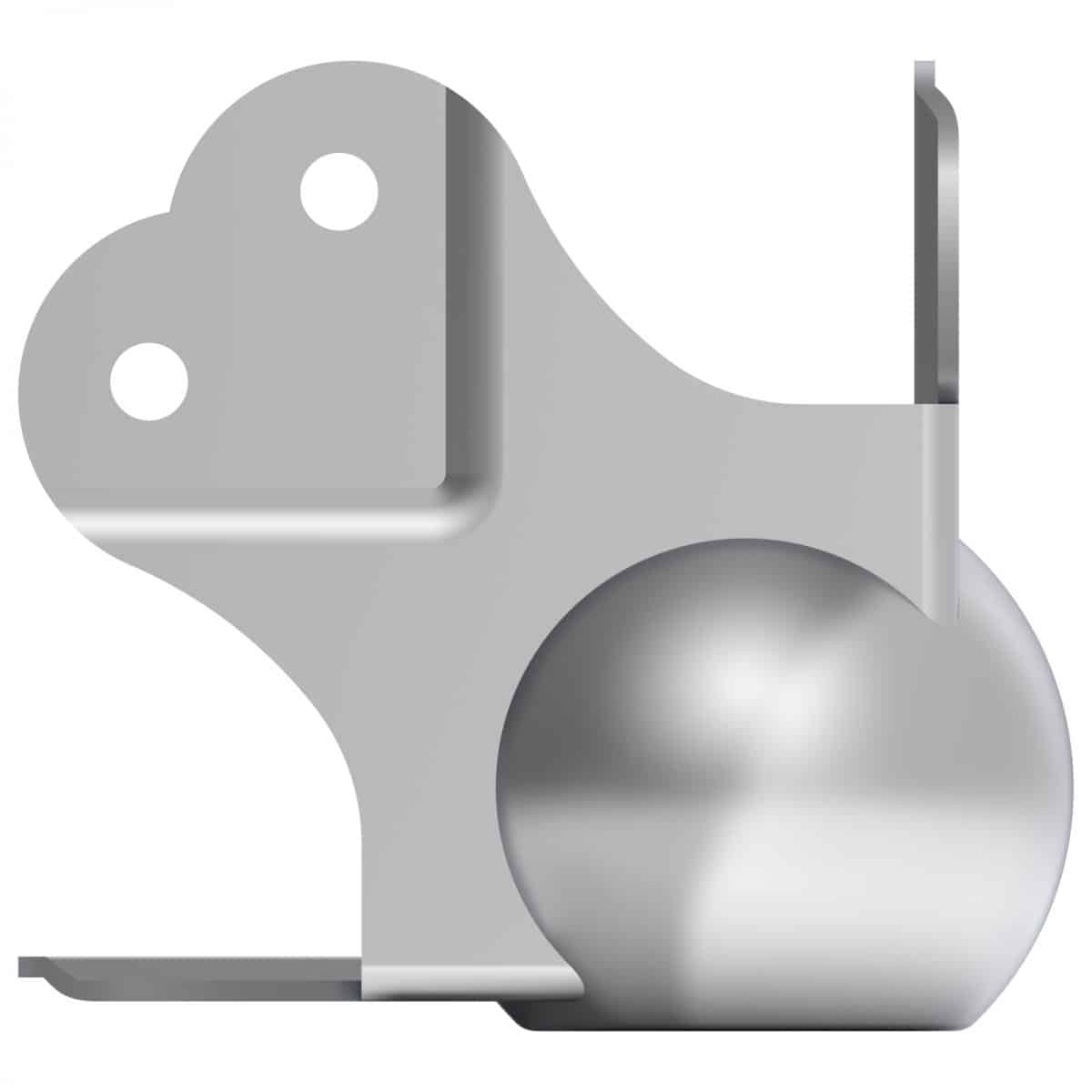

Road case ball corners cover the joint and seams between edged extrusions while protecting the road case from the usual bumps and sometimes harsh crashes. Ball corners also minimises damage done to other road cases should they crash into them and reduce the chances of scratching their panels.
It also features 30mm offsets allowing it to align seamlessly against the 30x30mm single-edged extrusions that we also offer.
The flat bottom of this corner is made to fit stably on to other copies of itself and other ball corners of the same size, allowing for road case designs that are stackable.

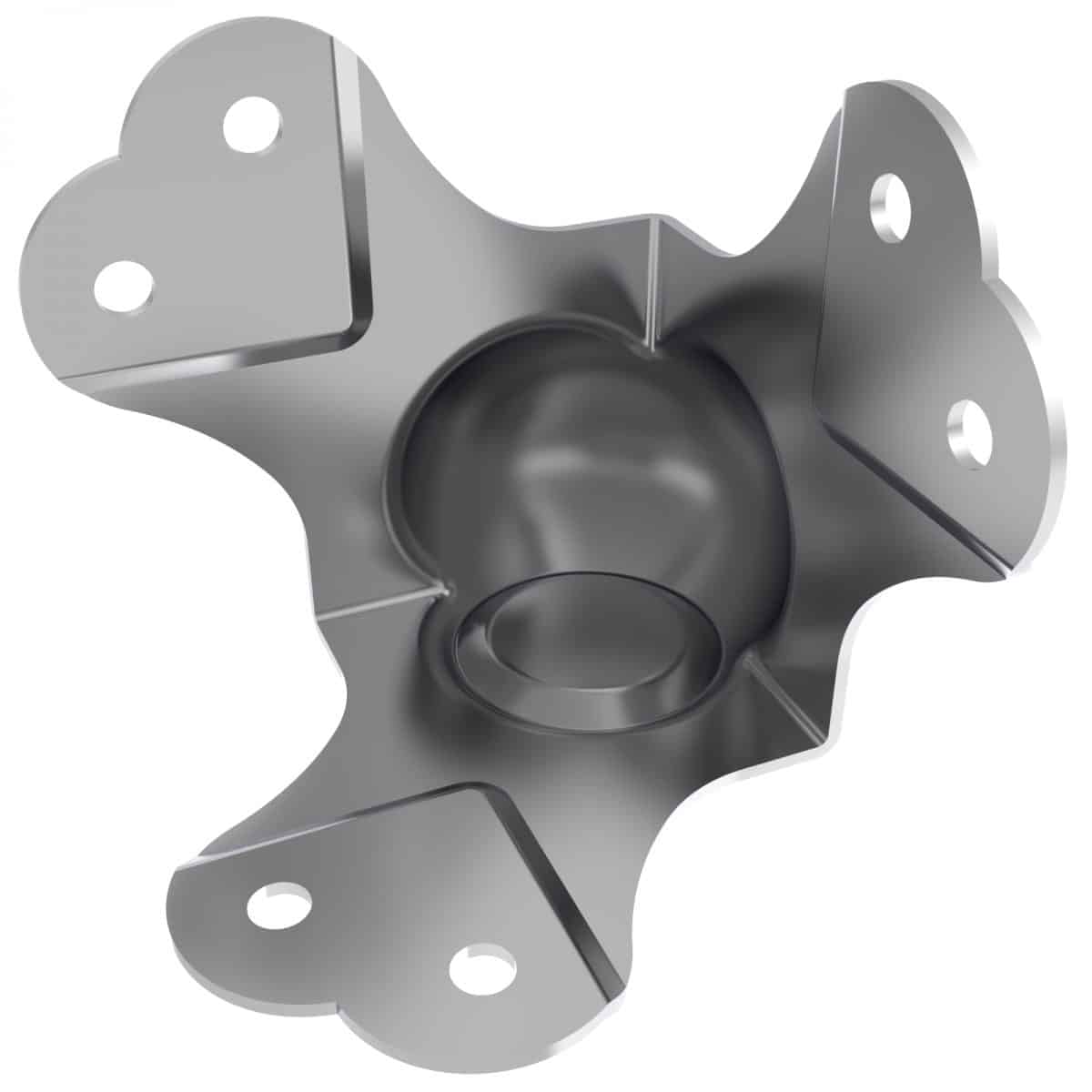

This ball corner features 6 mounting holes of 5mm diameter. This allows it to better distribute the force from impact to minimize damage to the plywood panels and overall structure of the road case. In case of a very forceful impact such as falling from truck or forklift, a strong ball corner such as this one will save the case by not budging easily.
With this large-sized hardware, you will probably be building with 9mm or 12mm laminated plywood panels as a general rule. Provided with good craftsmanship, the result should be a very sturdy case that will last many years in the back of a truck.
