Road Cases for dB Technologies VIO L208 Line Speaker System

Road Case with split lid

Road Case for VIO L250 rigged speakers

dB Technologies is a brand owned by AEB Industriale s.r.l., an Italian Company founded in 1974 in Bologna (Italy). A pioneer in the active speaker & digital amplifier technologies, it has distributed its brands in more than 160 countries. VIO L208 Line Speaker System is a 2-way Active Line Array Speaker System providing high quality audio output. It is a powerful and compact stand-alone Line Array System featuring an acoustic design and a built-in inclinometer.

A single module of VIO L208 Line Array System can weigh up to 18.1 Kgs. Armor Road Cases has designed and built Road Cases for VIO L208 for transport of 4 such units at a time. It also has sufficient storage space for cables and other connection hardware inside the case. The Road Cases have been made using Penn Elcom hardware to make them robust & sturdy.

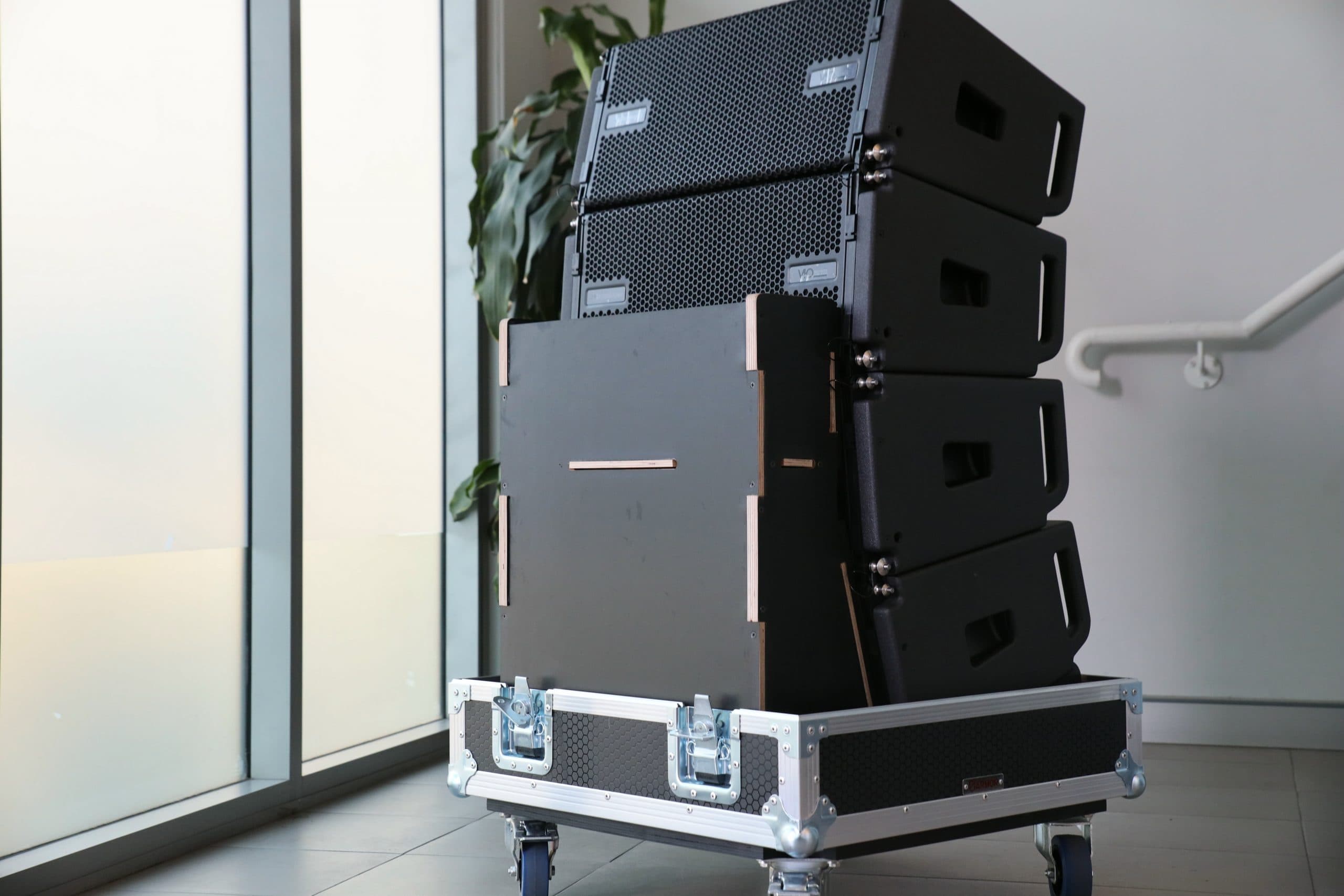

Road Case for VIO L208 Speakers with split lid

The Road Cases for dB Technologies VIO L208 have a unique split lid which enables the handling of the Road Cases and the speakers by one single person. The four speakers of the VIO L208 Line Array System are rigged and are about 1.3m in height. The lid has corner handles which makes it easy for the user to open the case without lifting it high in the air.

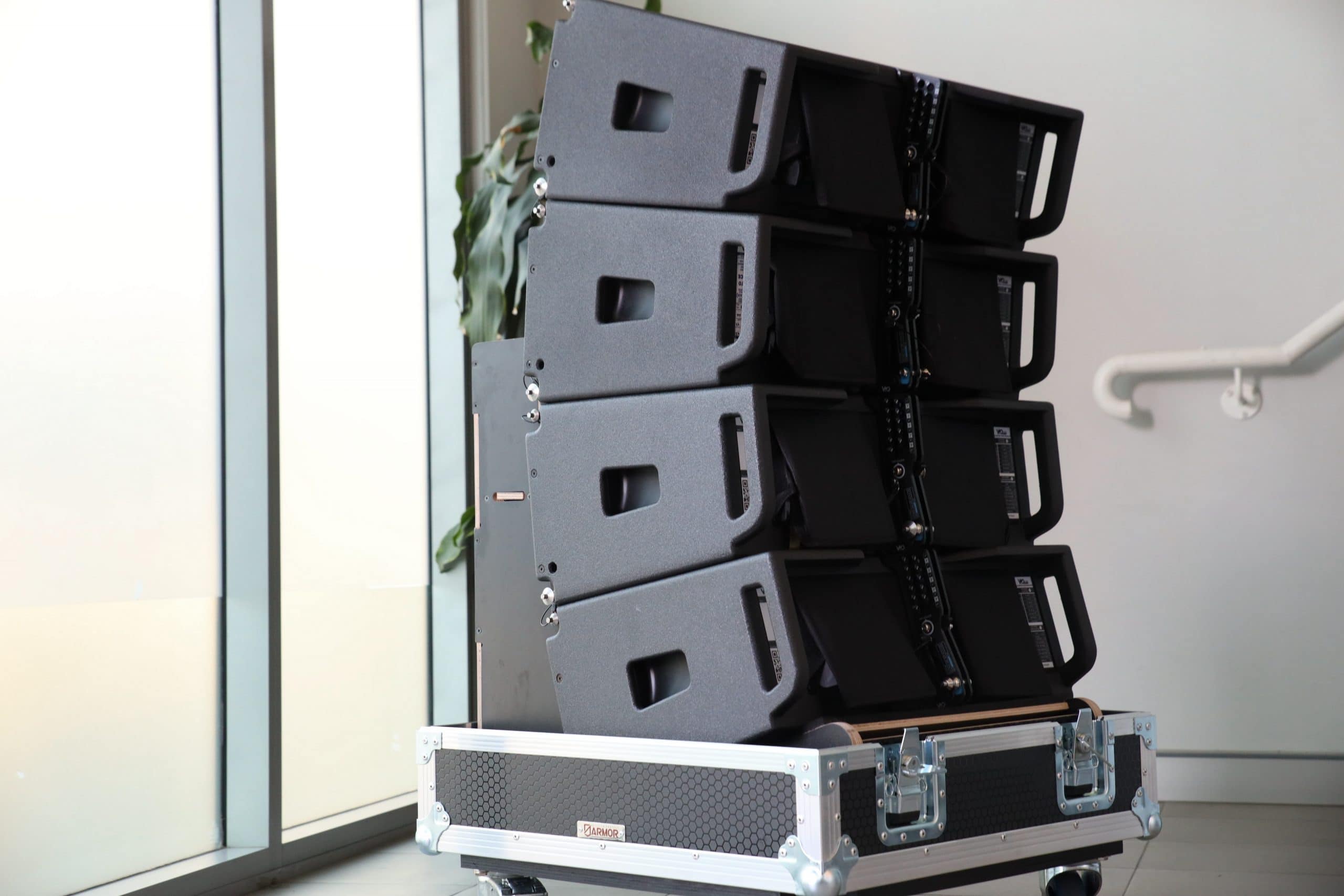

Road Case with plywood and foam insert

The Road Cases for dB Technologies VIO L208 Line Speaker System have ply wood and foam inserts made out of a combination of 18mm & 12mm plywood which help to reduce the cost and weight while providing sufficient strength for bearing the weight of 4 modules of VIO L208 Line Array System. This insert allows the rigged system to sit upright while the center of gravity of the rigged speakers remains at the center.

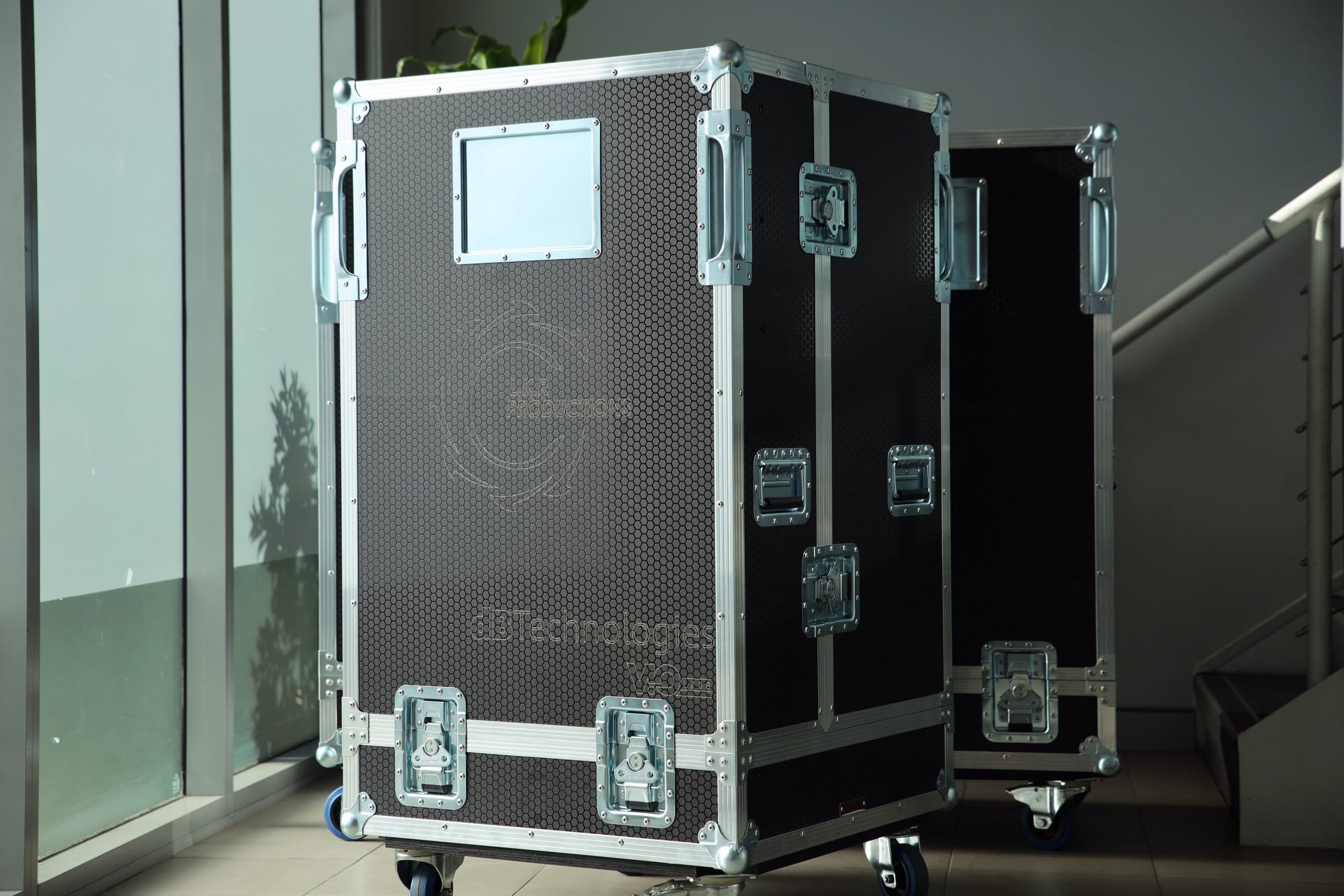

Road Case with split lid

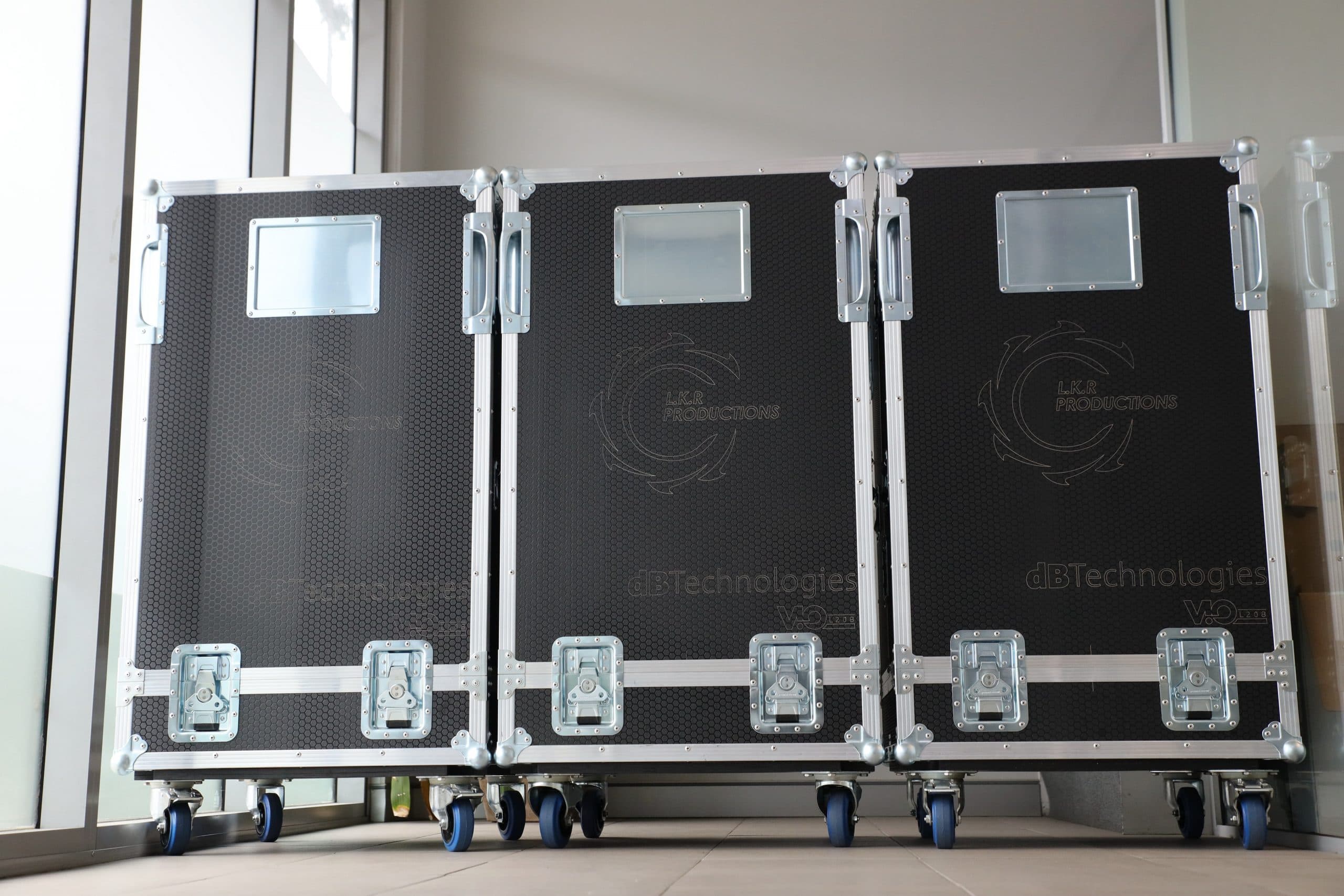

The Road Cases for VIO L208 Line Speaker System have been carefully designed with P1201 12MM laminated panels with glossy black honeycomb finish and black ABS interiors with an option of engraving/screen printing the client’s name. The case internal surfaces are lined with EVA foam which provides damping and protection against scratches to the VIO-L208 modules during handling and transportation.
